Dormer-Pramet

150N3R177C125-ISOD05-C

Material ID: 7546856

$639.72 CAD $658.00 CAD

150N3R177C125-ISOD05-C

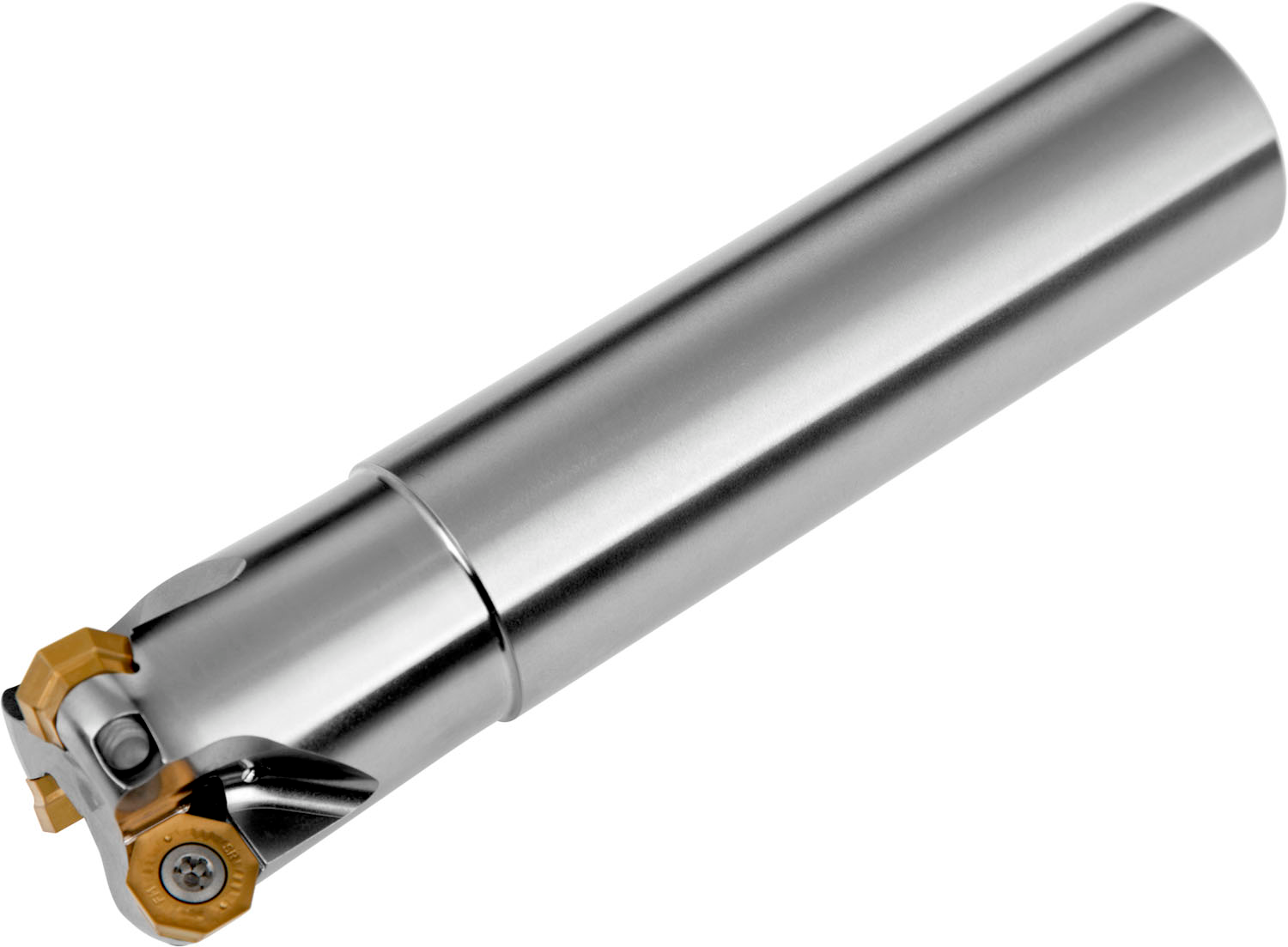

End Milling Cutter - Face

Material ID: 7546856


Copy face mill with positve/negative geometry which utilises 3 of OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 1.209 inch with 45 / 90° approach angle and 1.250 inch parallel shank according to DIN 1835A, 1.772 inch functional and 6.000 inch overall length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of .118 (.236/.394)"

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7546856
