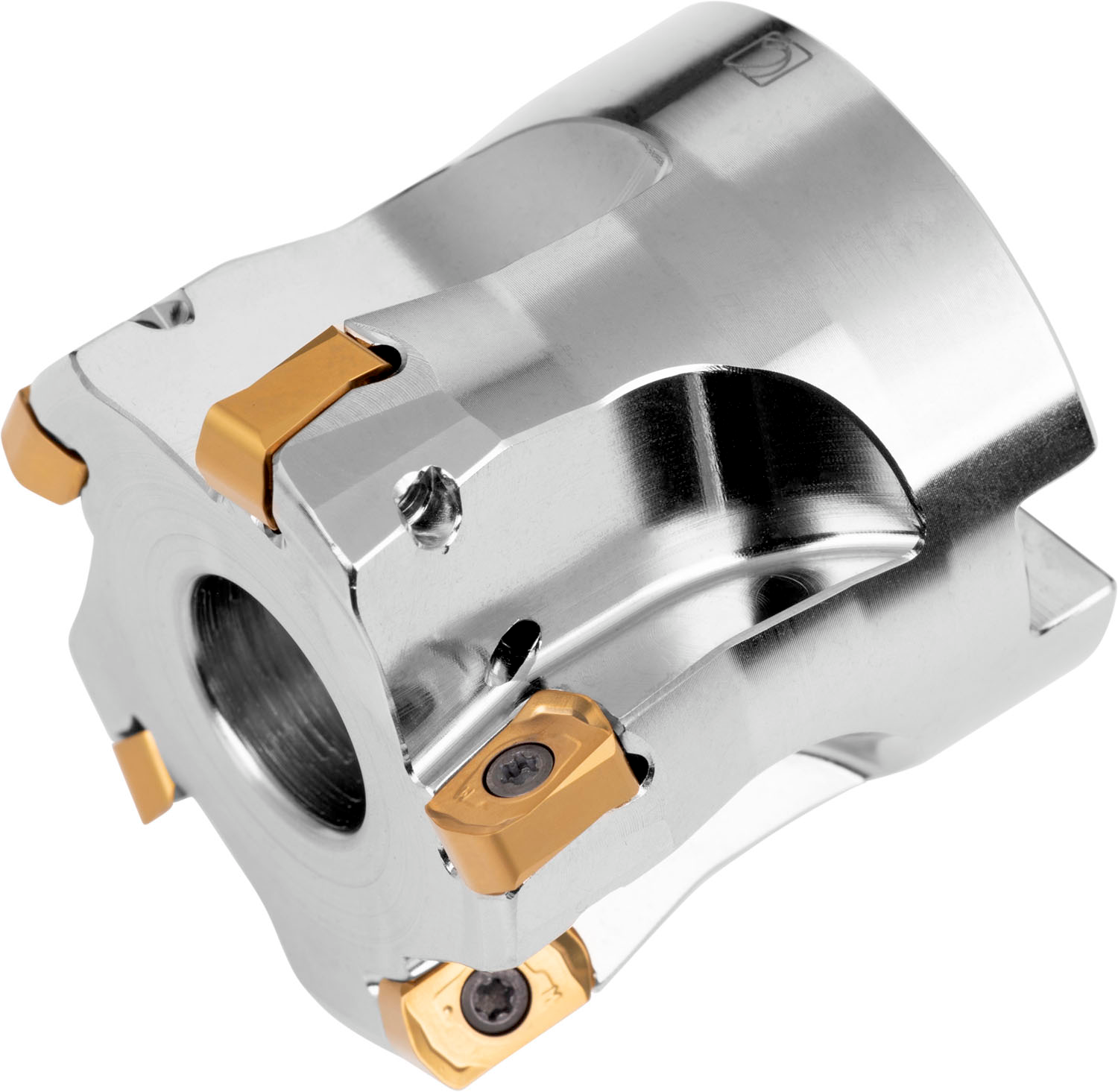

High feed cutter with double negative geometry which utilises 7 of BN.. 10.... or AN.. 10.... inserts, cutting diameter 1.50 inch with 20° approach angle and .50 inch connection bore according to DIN 8030-A, 1.575 inch protrusion length, through coolant for face milling, copy milling, deep shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .039 inch

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7464890
