Dormer-Pramet

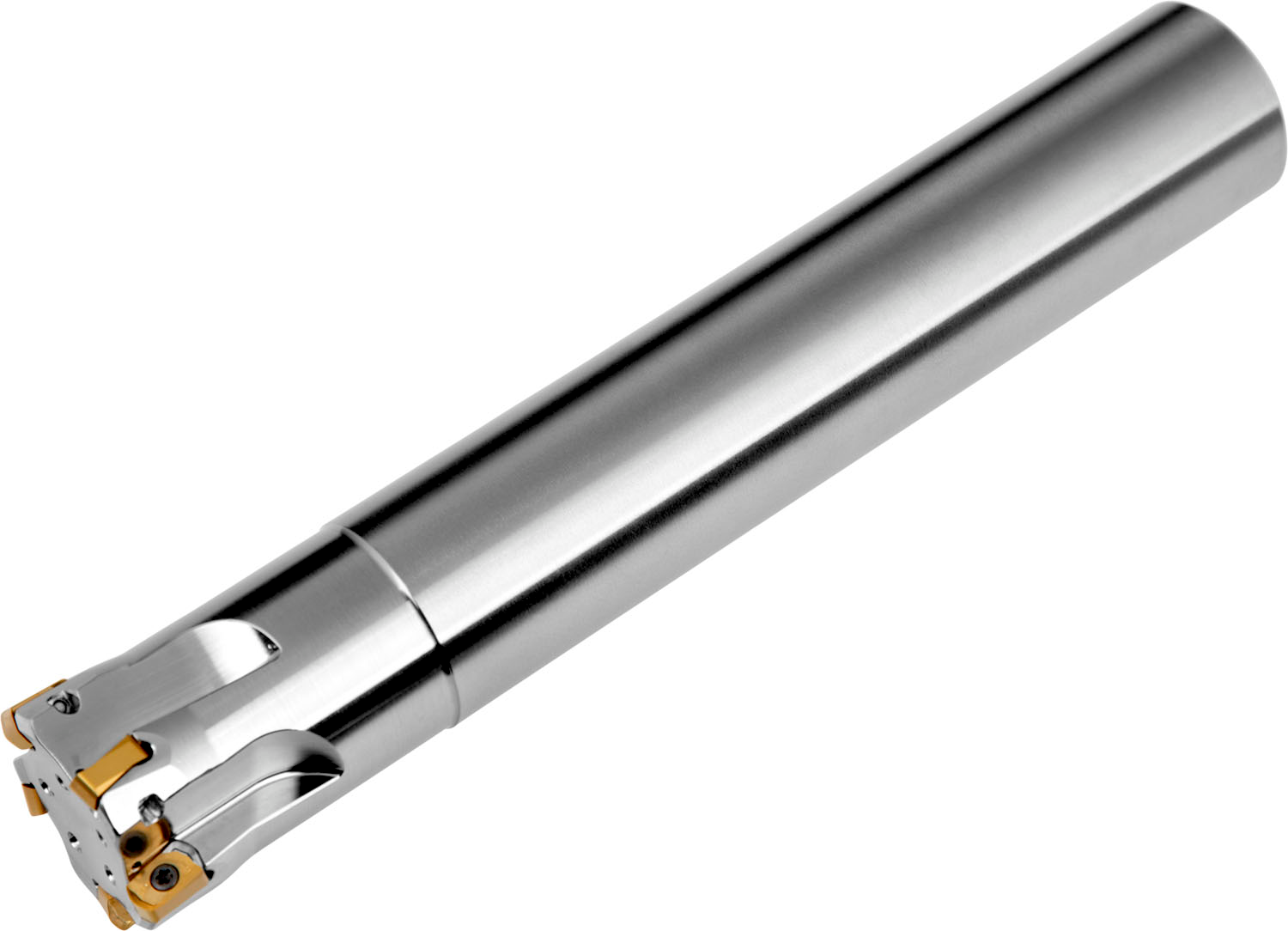

High feed cutter with double negative geometry which utilises 4 of BN.. 10.... or AN.. 10.... inserts, cutting diameter 1.00 inch with 20° approach angle and 1.00 inch parallel shank according to DIN 1835A, 4.724 inch functional and 8.661 inch overall length, through coolant and differential pitch for face milling, copy milling, deep shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .039 inch

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7455295
