Dormer-Pramet

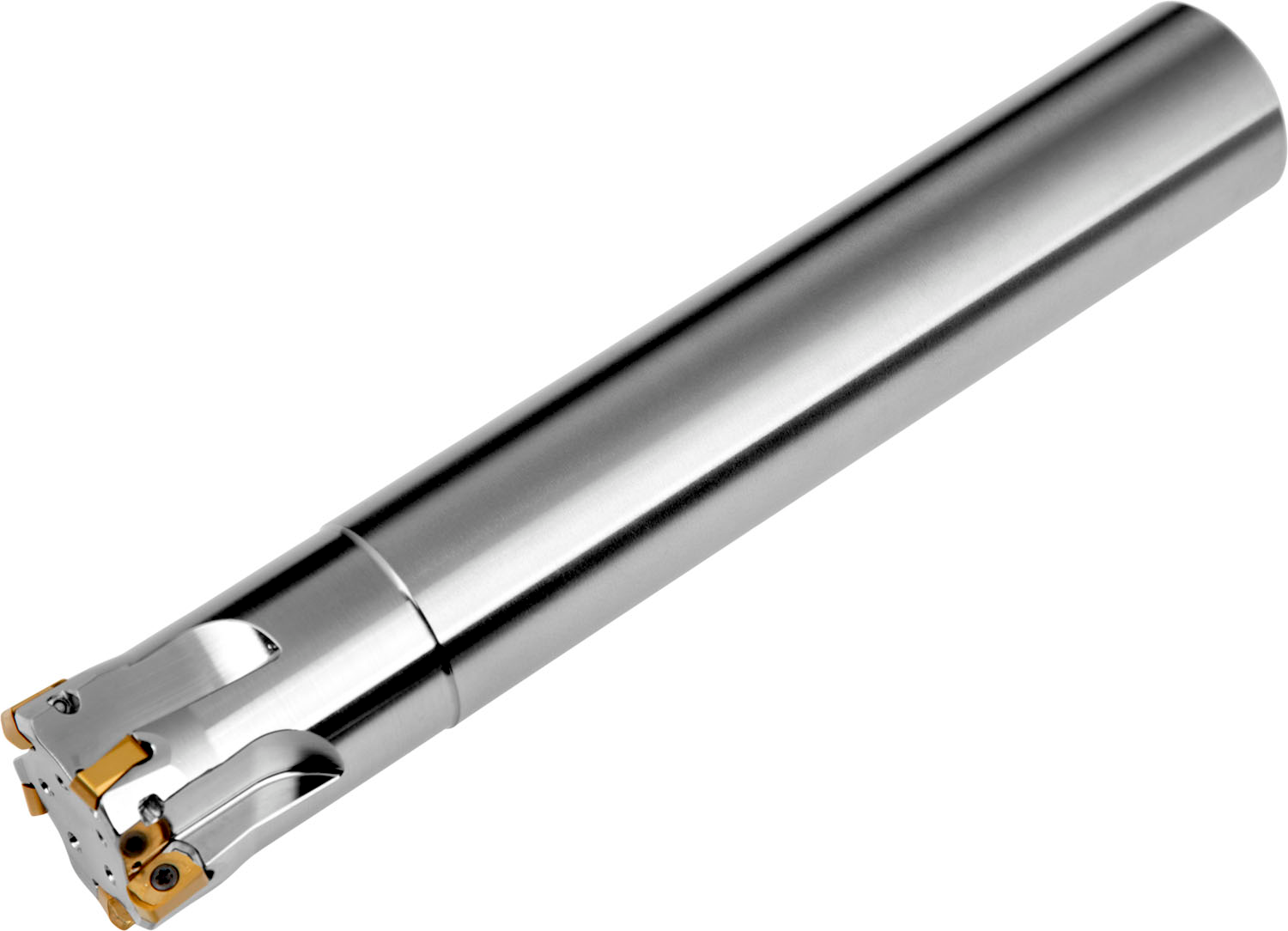

High feed cutter with double negative geometry which utilises 2 of BN.. 10.... or AN.. 10.... inserts, cutting diameter .625 inch with 20° approach angle and .625 inch parallel shank according to DIN 1835A, 1.969 inch functional and 5.906 inch overall length, through coolant for face milling, copy milling, deep shoulder milling, shallow slot milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of .039 inch

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7455290
