Dormer-Pramet

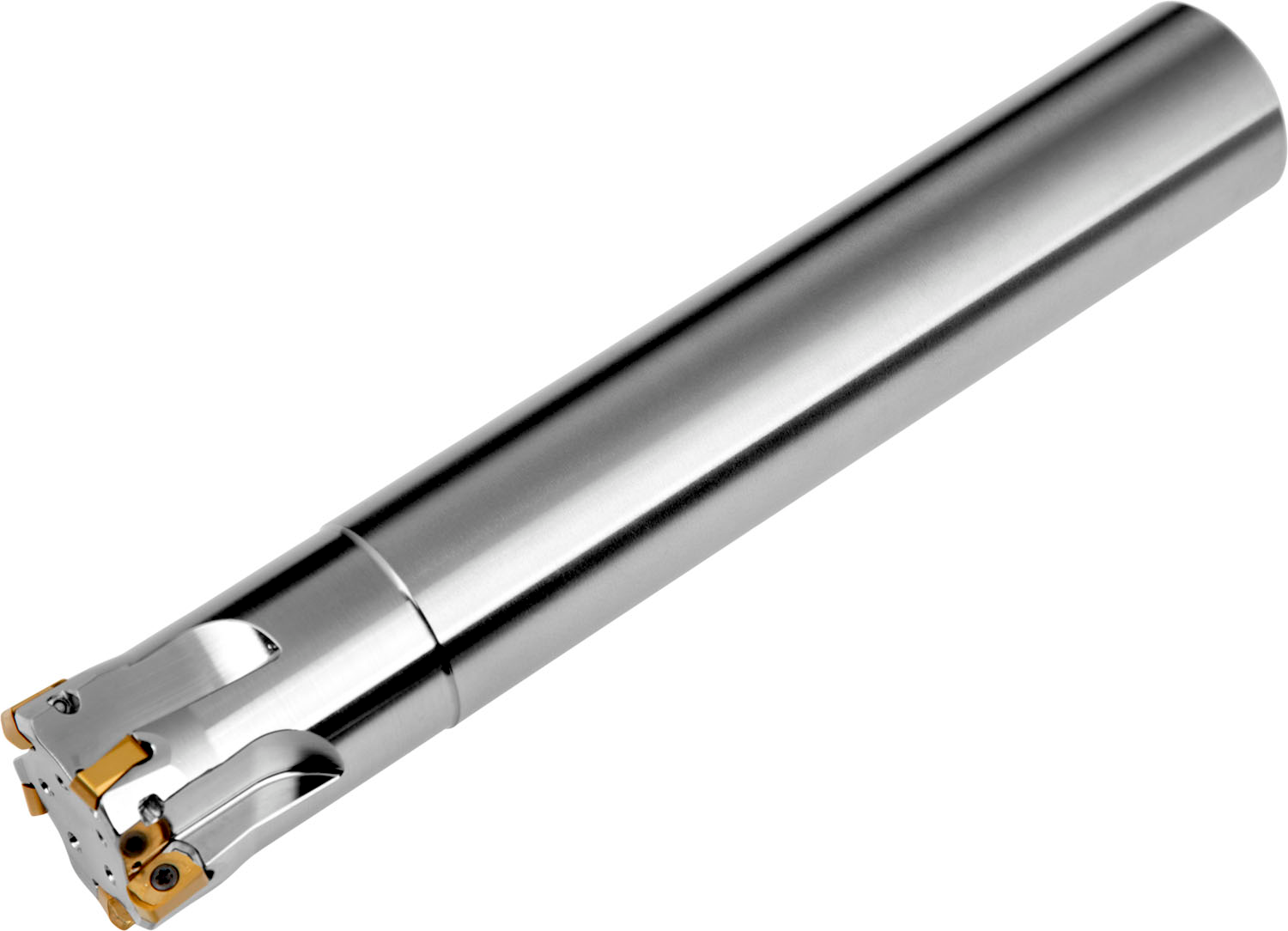

High feed cutter with double negative geometry which utilises 4 of BN.. 10.... or AN.. 10.... inserts, cutting diameter 25 mm with 20° approach angle and 25 mm parallel shank according to DIN 1835A, 50 mm functional and 140 mm overall length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.0 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7452546
