Dormer-Pramet

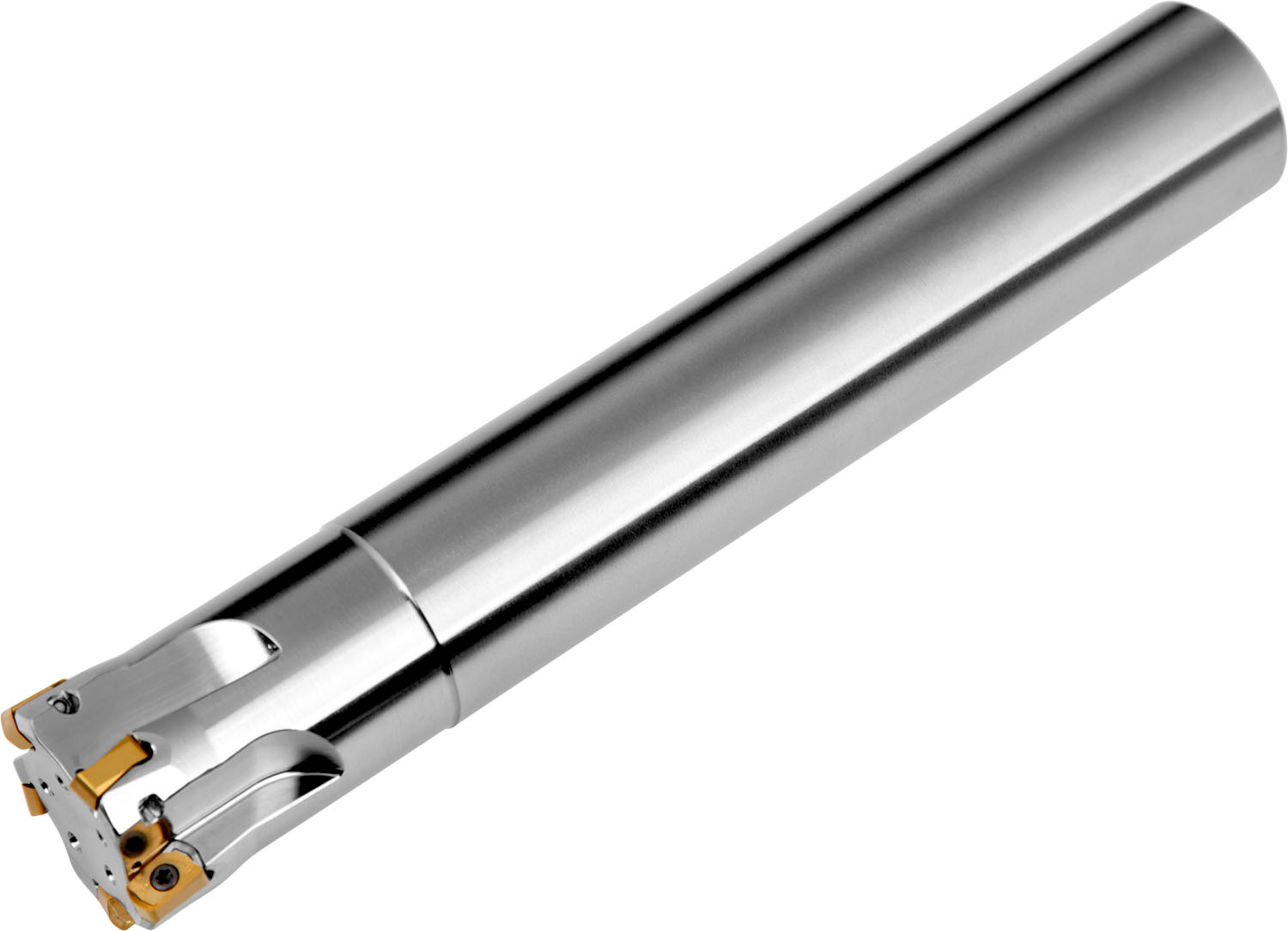

High feed cutter with double negative geometry which utilises 2 of BN.. 10.... or AN.. 10.... inserts, cutting diameter 16 mm with 20° approach angle and 14 mm parallel shank according to DIN 1835A, 30 mm functional and 150 mm overall length, through coolant for face milling, copy milling, shallow shoulder milling, ramping, helical milling, plunge milling and progressive plunge milling with a maximum depth of cut of 1.0 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7452542
