Dormer-Pramet

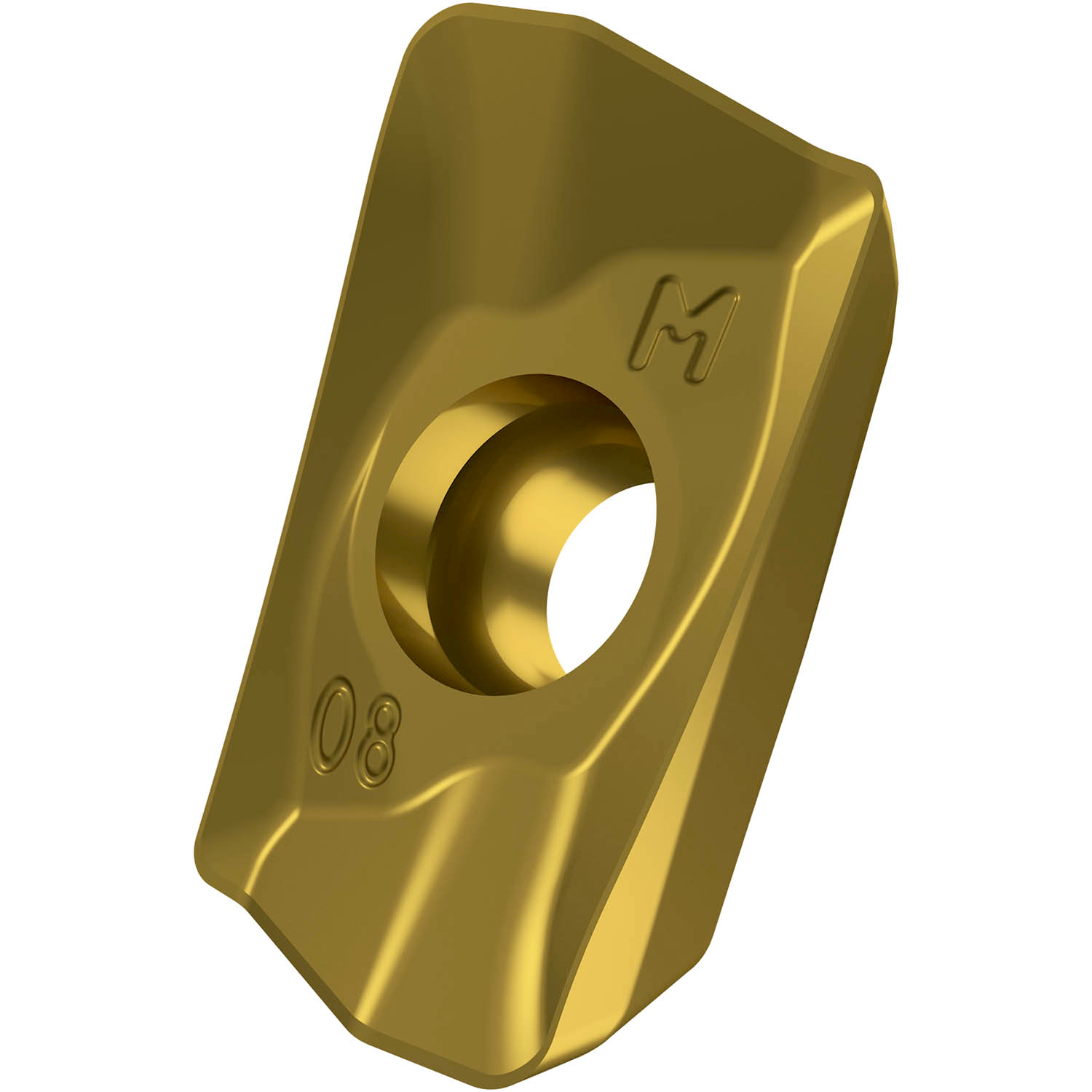

Single-sided milling insert AD.. 11.., 85° parallelogram for a maximum depth of cut of 9.0 mm, with 0.4 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and M geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40/M20 -M35 and K20 -K40 for machining of steel, stainless-steel and cast-iron with shoulder mills SAD11E or shoulder mills with extended flute J(T)-SAD11E

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7447804
