Dormer-Pramet

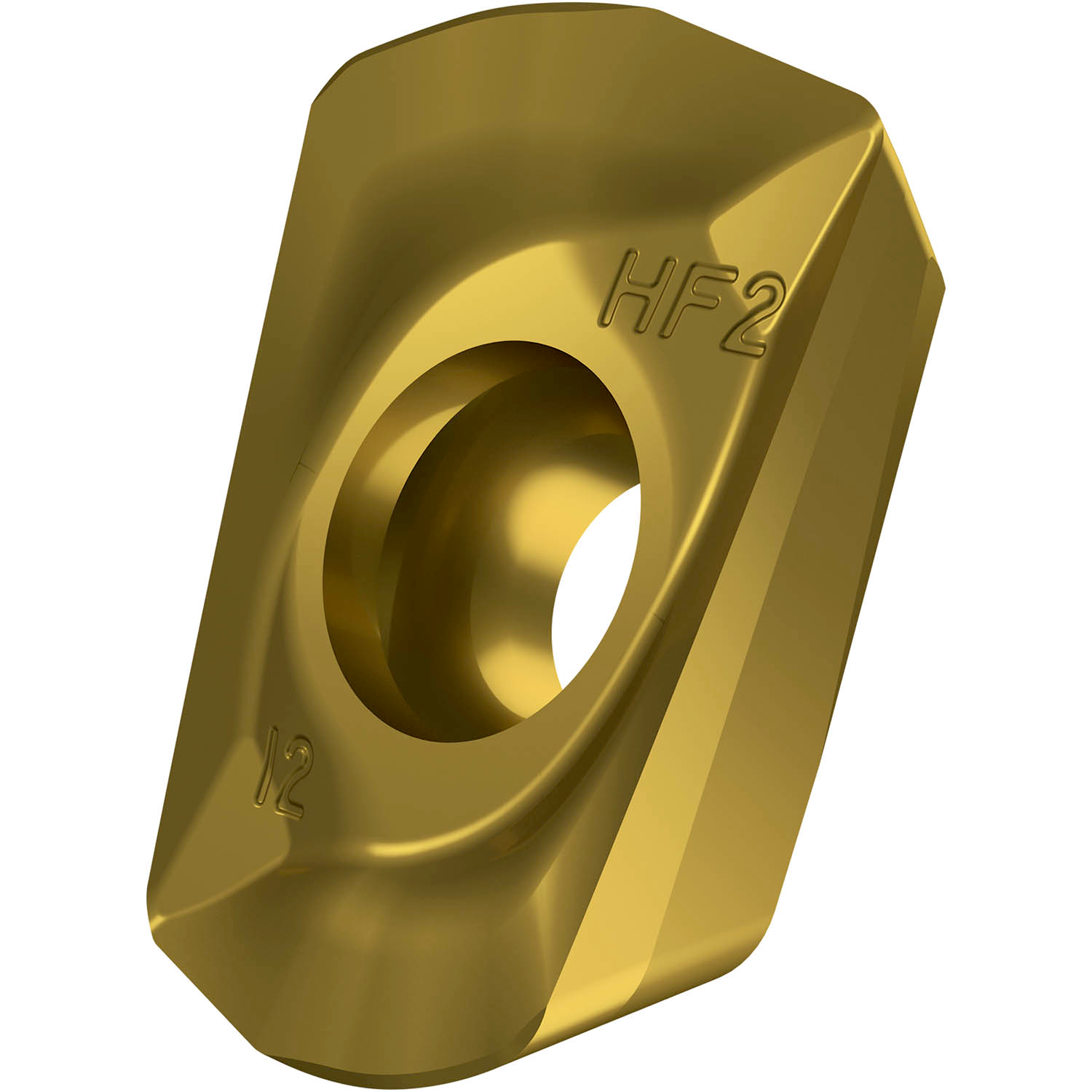

Single-sided milling insert AD.. 16.., 85° parallelogram and high-feed design for a maximum depth of cut of 1.3 mm, with 1.2 mm corner radius, an indexing accuracy according to ISO-tolerance class-E and HF2 geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20 -P40 for machining of steel with shoulder mills SAD16E

Package Quantity: 10
