Dormer-Pramet

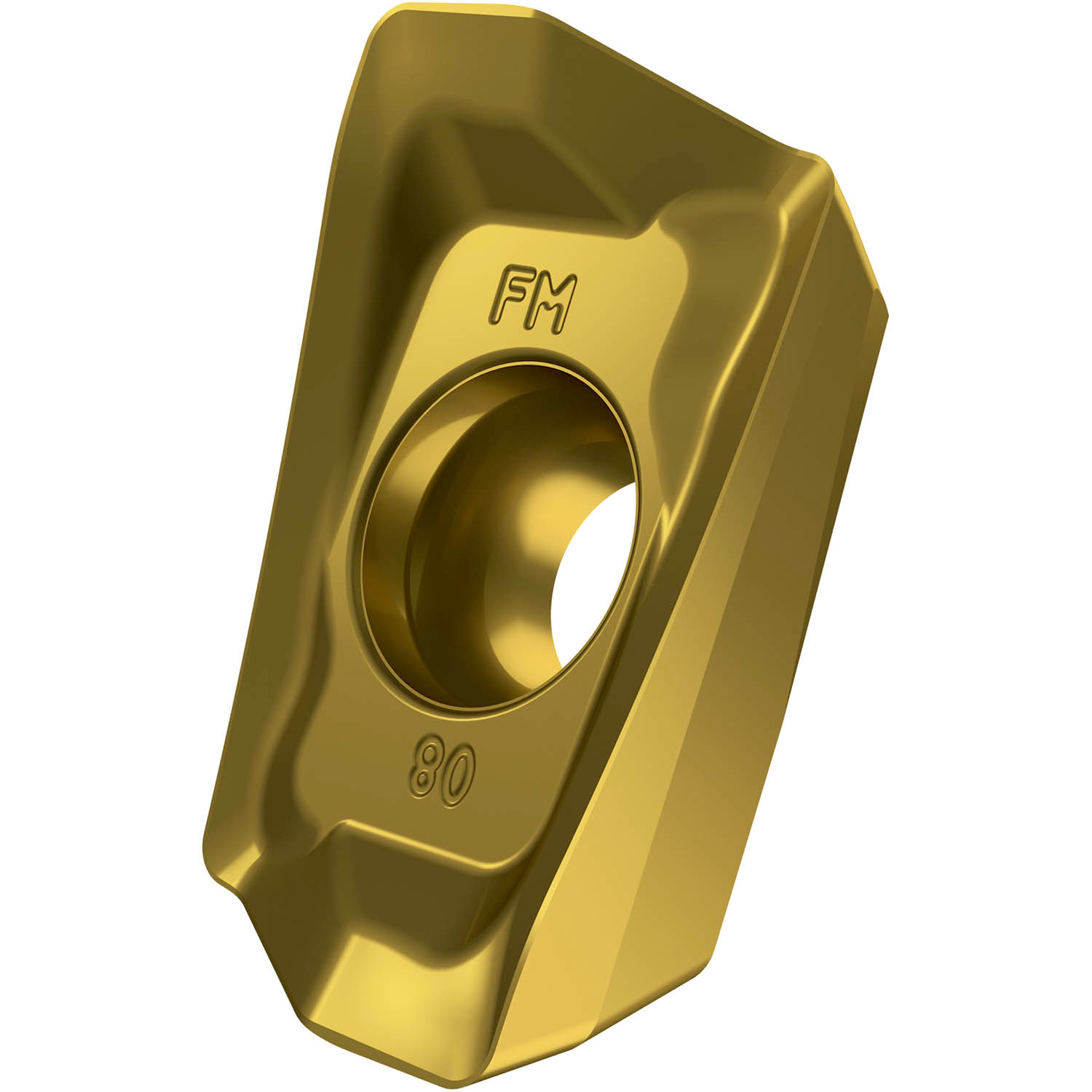

Single-sided milling insert AD.. 16.., 85° parallelogram for a maximum depth of cut of 13.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-E and FM geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade ranges P20 -P40 and K20 -K40 for machining of steel and cast-iron with shoulder mills SAD16E or shoulder mills with extended flute J(T)-SAD16E

Minimum Order Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7447739
