Dormer-Pramet
E412M27
Material ID: 7441198
Sale price
$457.78 CAD
Regular price
$824.00 CAD
E412M27

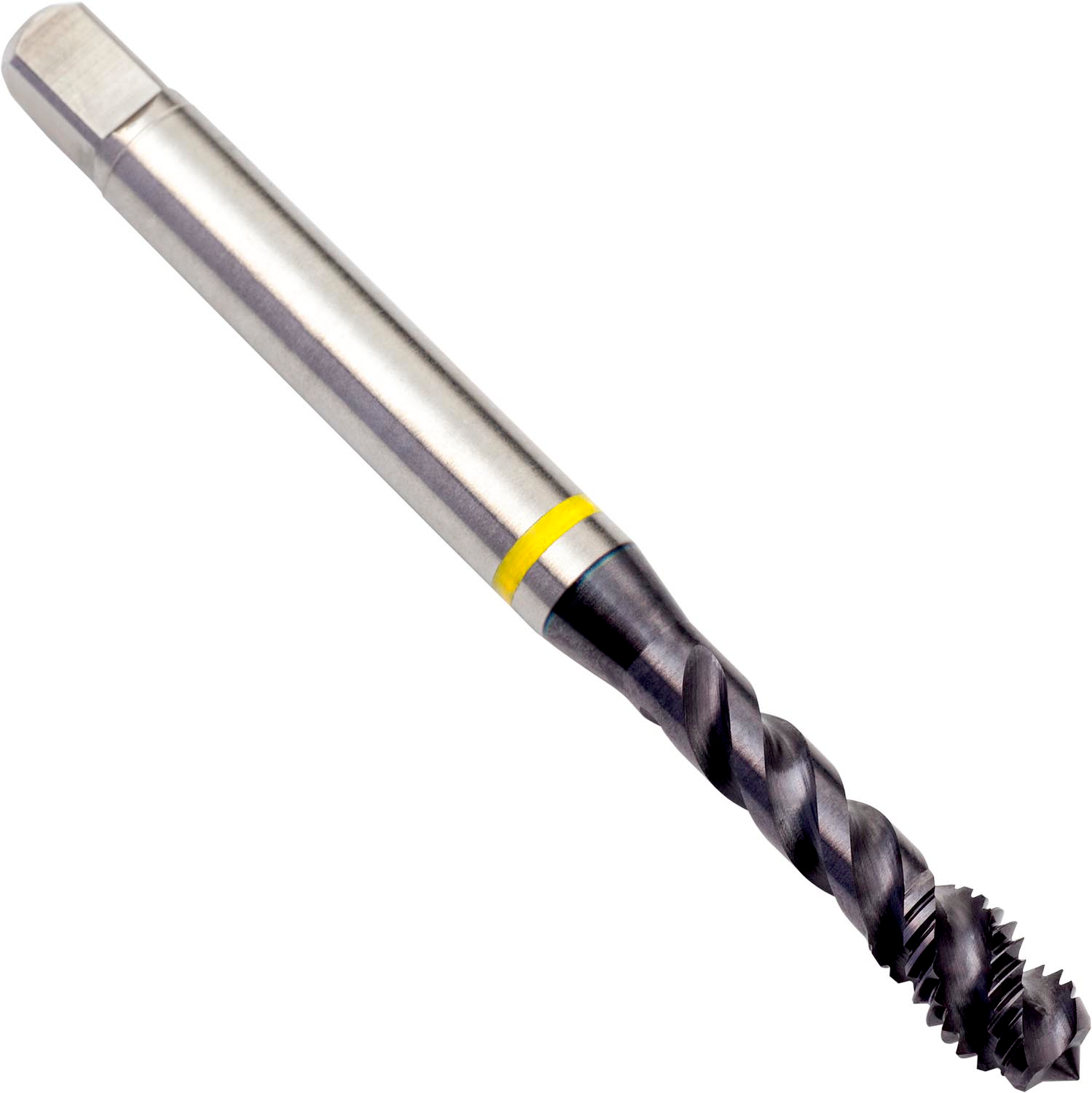

M Machine Tap Spiral Flute 48°, Back Tapered, Yellow Shark
Material ID: 7441198
Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M27 with 3.00 mm pitch and 6H class of fit, dimensions according to DIN 376 standard with 20.0 mm shank and 16.0 mm square drive, powder metallurgical HSS-E with TiAlN-Top coating and 48° helix angle for 3xD blind hole threading in steel and cast steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
