Dormer-Pramet
E624M16
Material ID: 7350540
Sale price
$126.67 CAD
Regular price
$228.00 CAD
E624M16

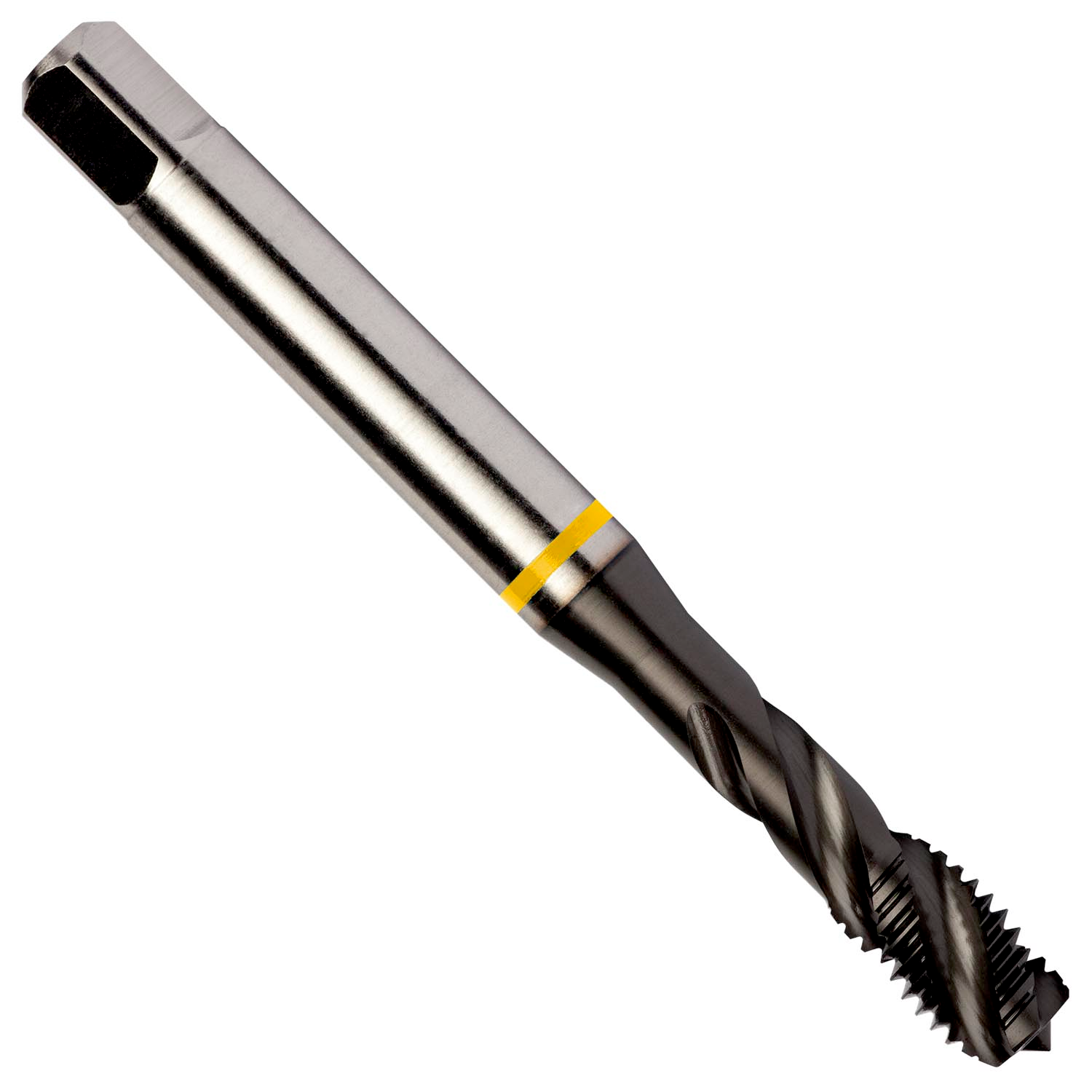

DIN ANSI Machine Tap, Yellow Shark for Low Alloy Steels, Spiral Flute
Material ID: 7350540
Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit with D7 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800 inch shank and 0.3580 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
