Dormer-Pramet
E9085/8
Material ID: 7350529
Sale price
$119.44 CAD
Regular price
$215.00 CAD
E9085/8

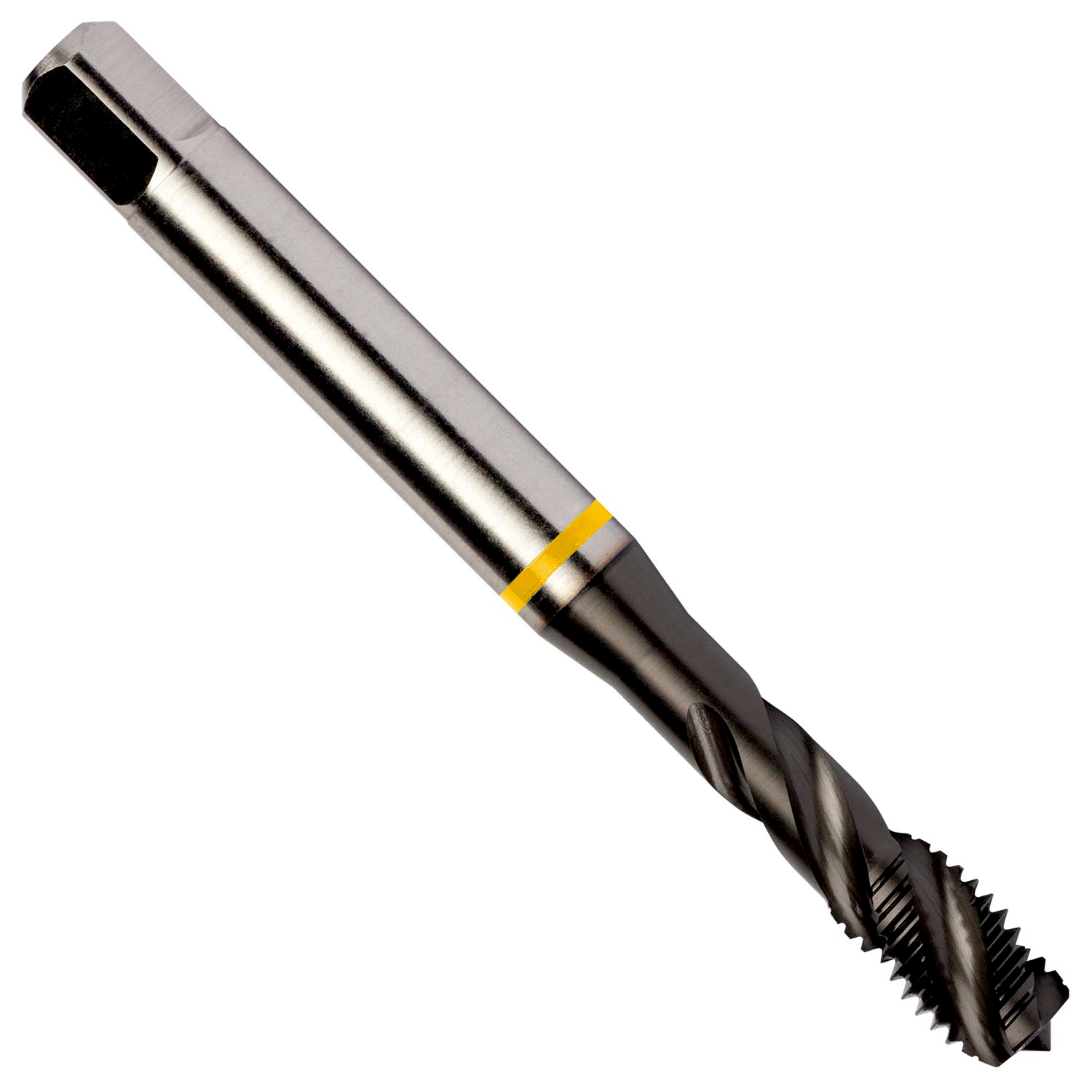

DIN ANSI Machine Tap, Yellow Shark for Low Alloy Steels, Spiral Flute
Material ID: 7350529
Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 5/8 inch with 18 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800 inch shank and 0.3580 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
