Dormer-Pramet
E80810-24
Material ID: 7350513
Sale price
$32.44 CAD
Regular price
$58.40 CAD
E80810-24

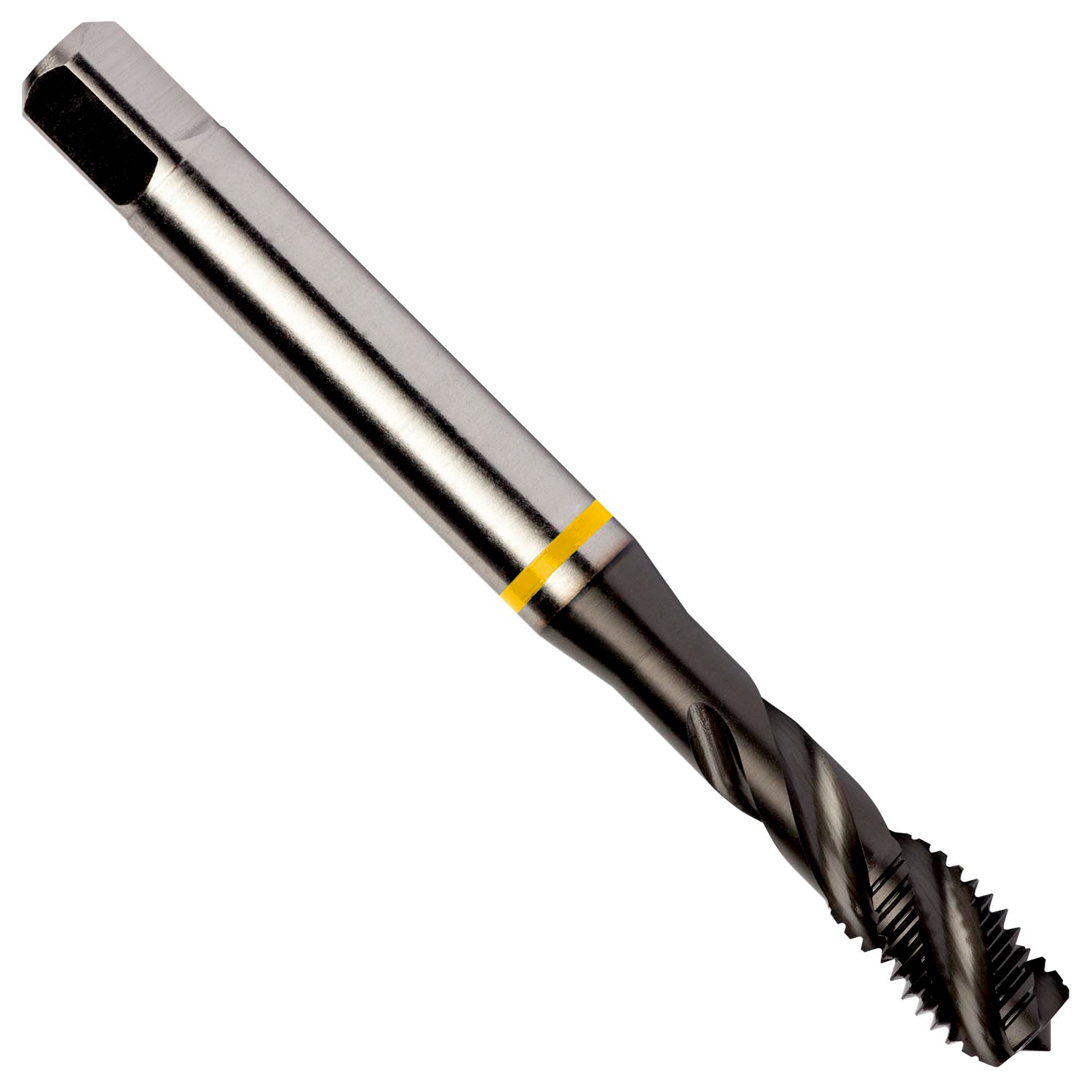

DIN ANSI Machine Tap, Yellow Shark for Low Alloy Steels, Spiral Flute
Material ID: 7350513
Spiral flute tap Yellow Shark with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 10 with 24 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1940 inch shank and 0.1500 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating and 40° helix angle for 2xD blind hole threading in free machining and plain carbon steel and copper or copper alloys
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
