Dormer-Pramet
E625M4
Material ID: 7350492
Sale price
$25.03 CAD
Regular price
$45.05 CAD
E625M4

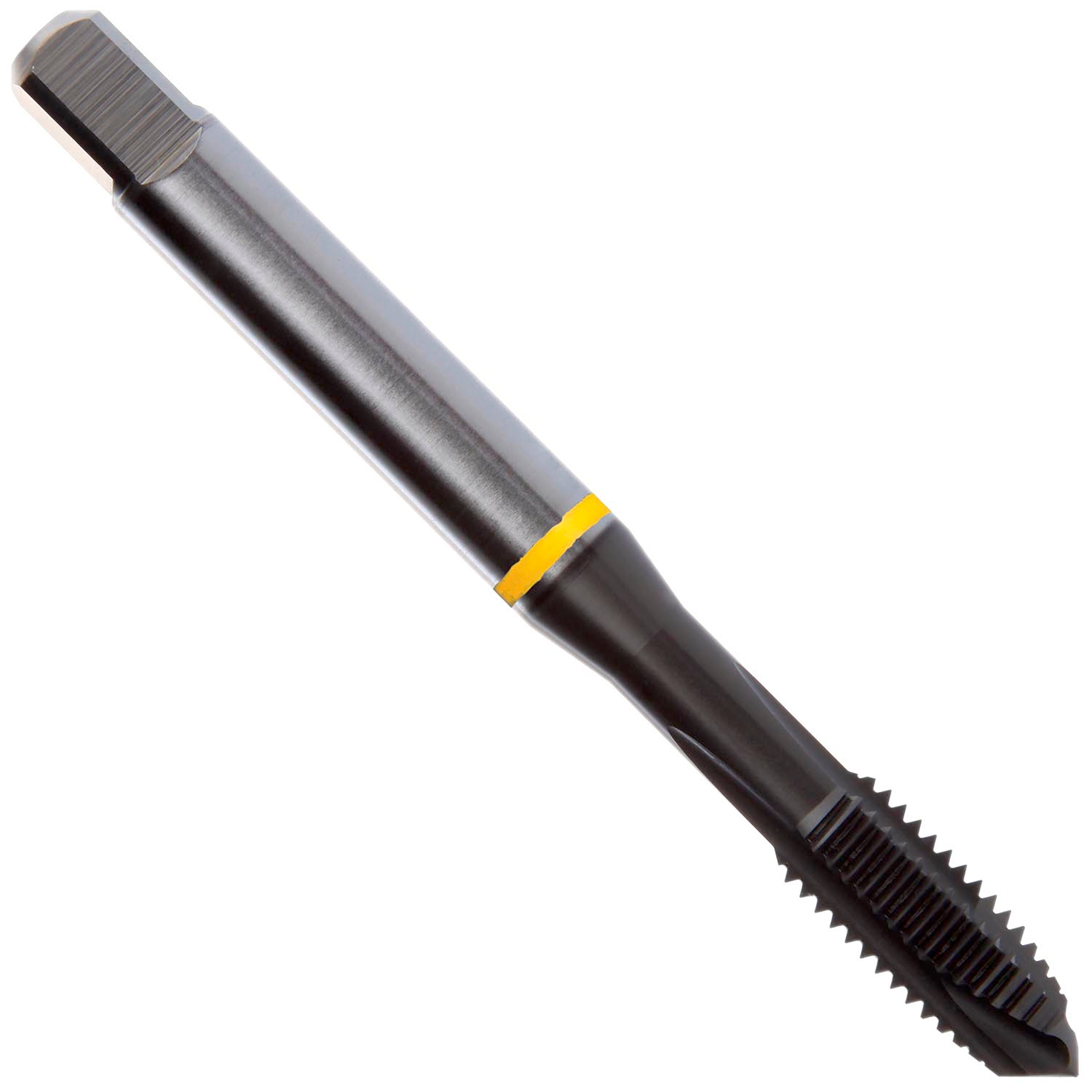

DIN ANSI Machine Tap, Yellow Shark for Low Alloy Steels, Plug Style
Material ID: 7350492
Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit with D4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1680 inch shank and 0.1290 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
