Dormer-Pramet
E8091/2
Material ID: 7350477
Sale price
$53.44 CAD
Regular price
$96.20 CAD
E8091/2

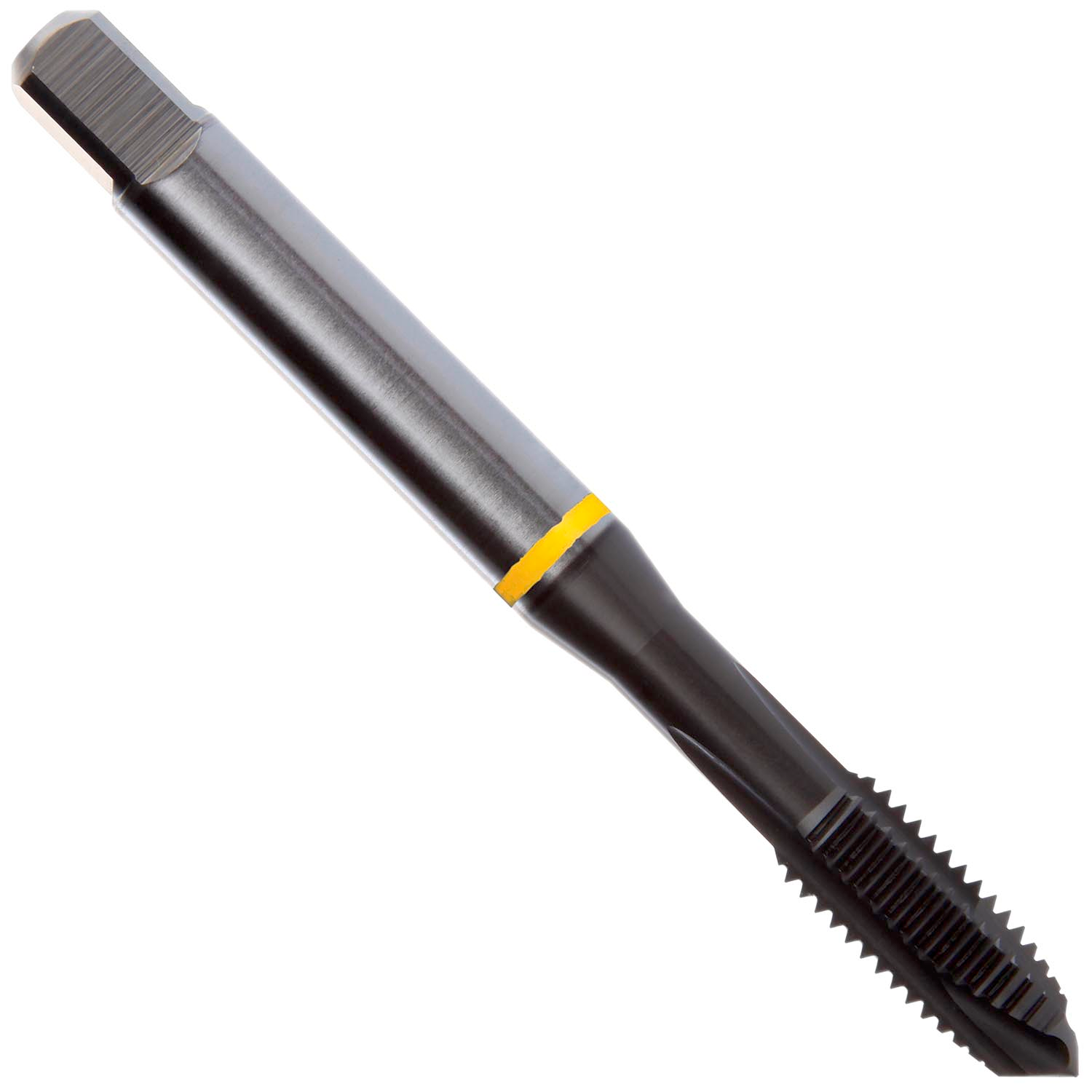

DIN ANSI Machine Tap, Yellow Shark for Low Alloy Steels, Plug Style
Material ID: 7350477
Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1/2 inch with 13 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670 inch shank and 0.2730 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
