E8096-32
E8096-32

Dormer-Pramet

E8096-32

Material ID: 7350470

$21.89 CAD $39.40 CAD

E8096-32

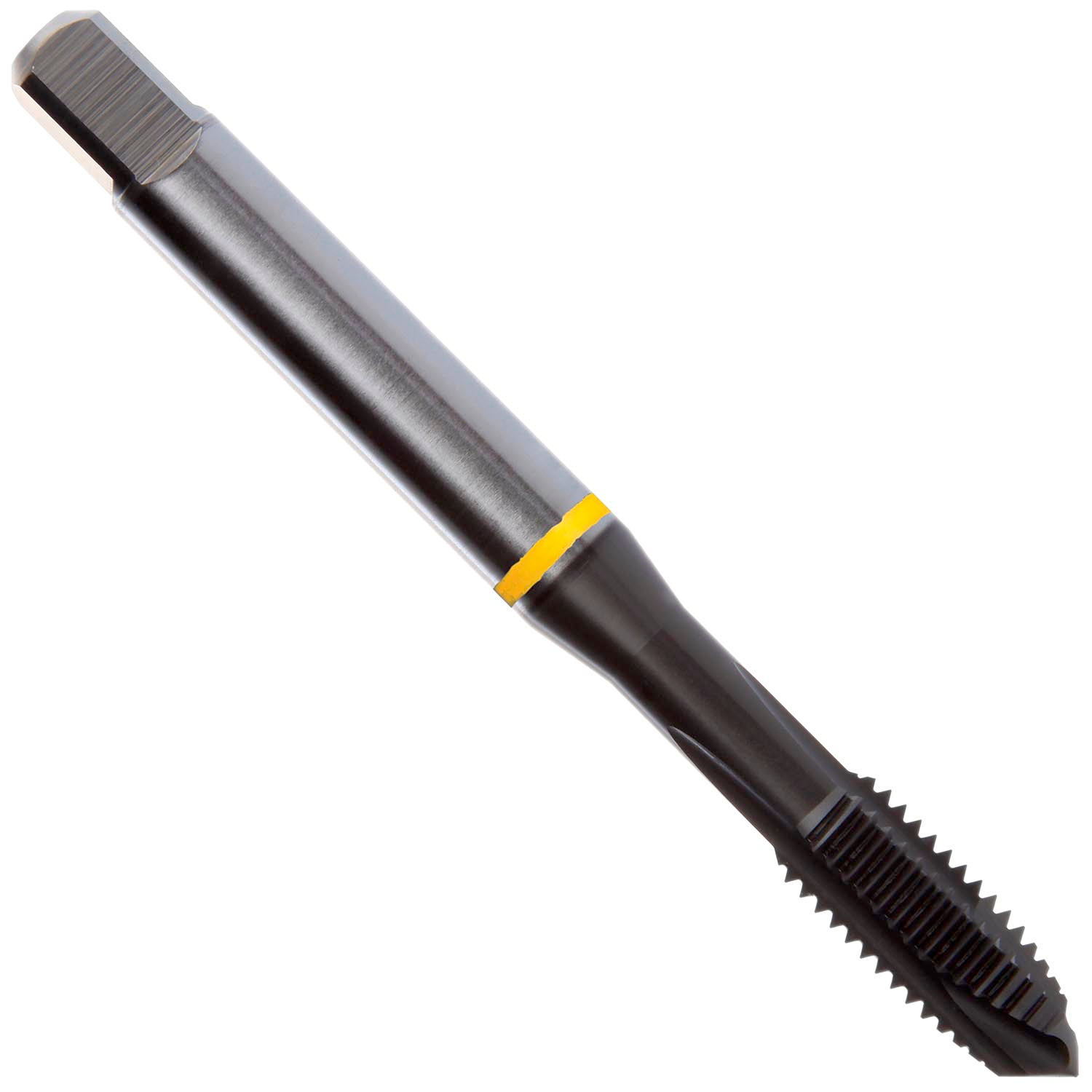

DIN ANSI Machine Tap, Yellow Shark for Low Alloy Steels, Plug Style

Material ID: 7350470


Spiral point tap Yellow Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 6 with 32 TPI and 2B class of fit with H2 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1410 inch shank and 0.1080 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in free machining and plain carbon steel and copper or copper alloys

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7350470
