E766M12X1.25

E766M12X1.25

$93.89 CAD $169.00 CAD
Skip to product information
E766M12X1.25
E766M12X1.25

Dormer-Pramet

E766M12X1.25

Material ID: 7350467

$93.89 CAD $169.00 CAD

E766M12X1.25

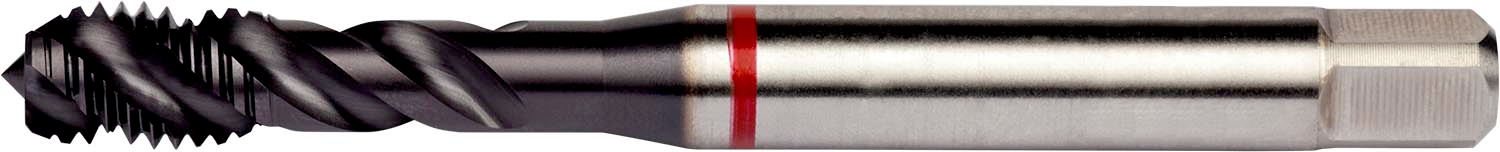

DIN ANSI Machine Tap, Red Shark for Alloy Steels, Spiral Flute

Material ID: 7350467


Spiral flute tap Red Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric Fine thread M12 with 1.25 mm pitch and D6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670 inch shank and 0.2730 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7350467
