Dormer-Pramet
E626M16
Material ID: 7350461
Sale price
$139.44 CAD
Regular price
$251.00 CAD
E626M16

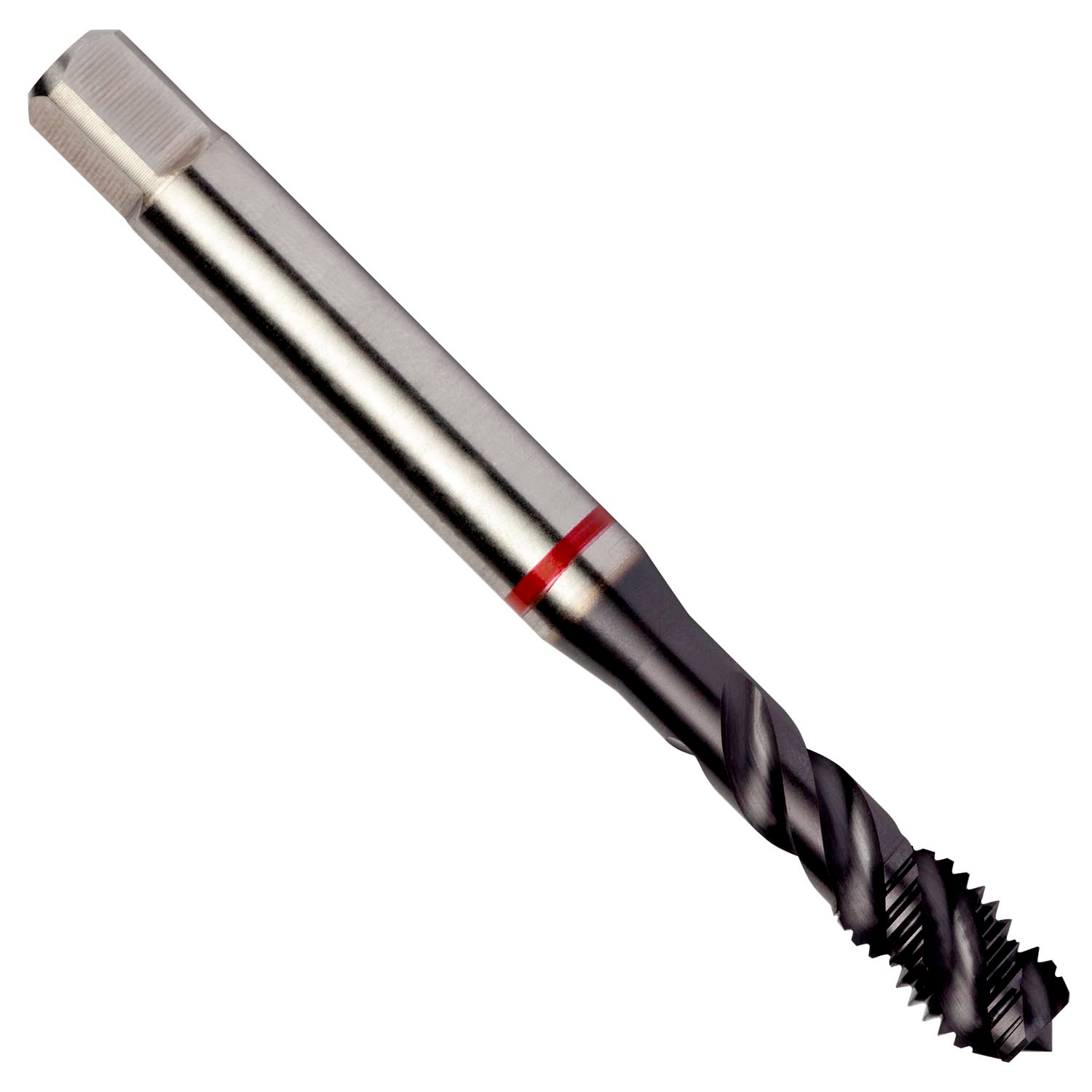

DIN ANSI Machine Tap, Red Shark for Alloy Steels, Spiral Flute
Material ID: 7350461
Spiral flute tap Red Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit with D7 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800 inch shank and 0.3580 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
