Dormer-Pramet
E626M12
Material ID: 7350459
Sale price
$93.89 CAD
Regular price
$169.00 CAD
E626M12

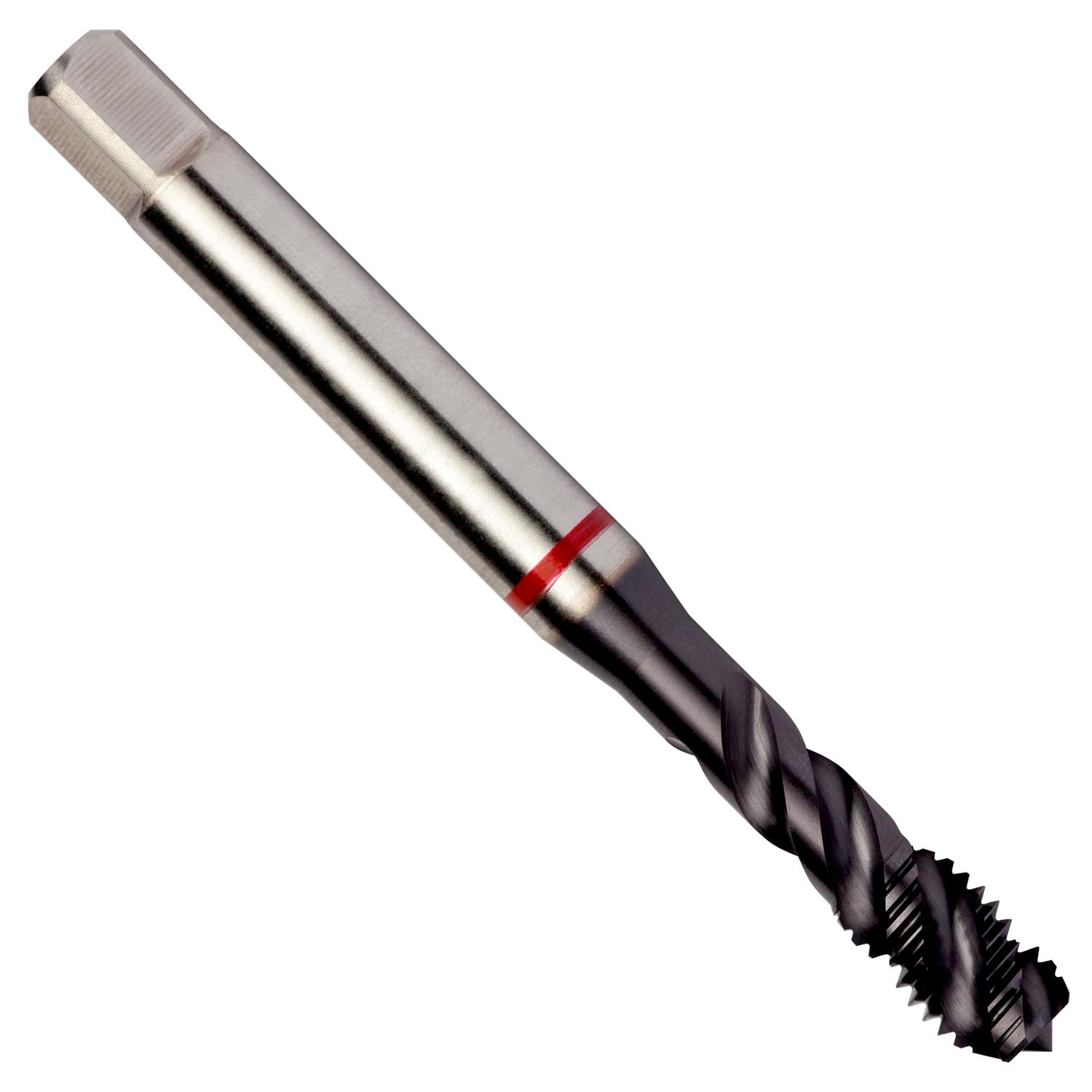

DIN ANSI Machine Tap, Red Shark for Alloy Steels, Spiral Flute
Material ID: 7350459
Spiral flute tap Red Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M12 with 1.75 mm pitch and 6H class of fit with D6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670 inch shank and 0.2730 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
