Dormer-Pramet

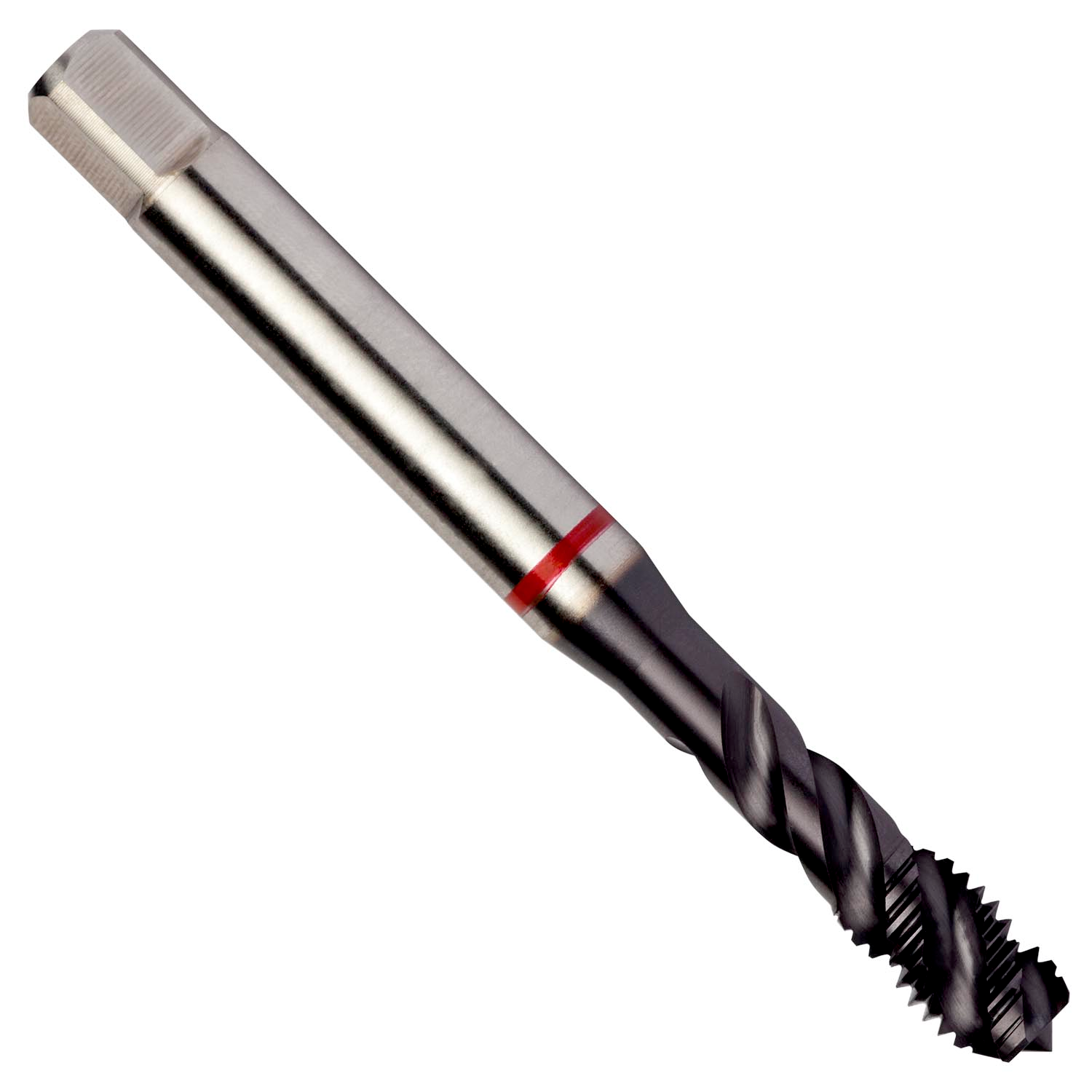

Spiral flute tap Red Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit with D5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180 inch shank and 0.2360 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7350457
