E8107/8

E8107/8

$250.00 CAD $450.00 CAD
Skip to product information
E8107/8
E8107/8

Dormer-Pramet

E8107/8

Material ID: 7350441

$250.00 CAD $450.00 CAD

E8107/8

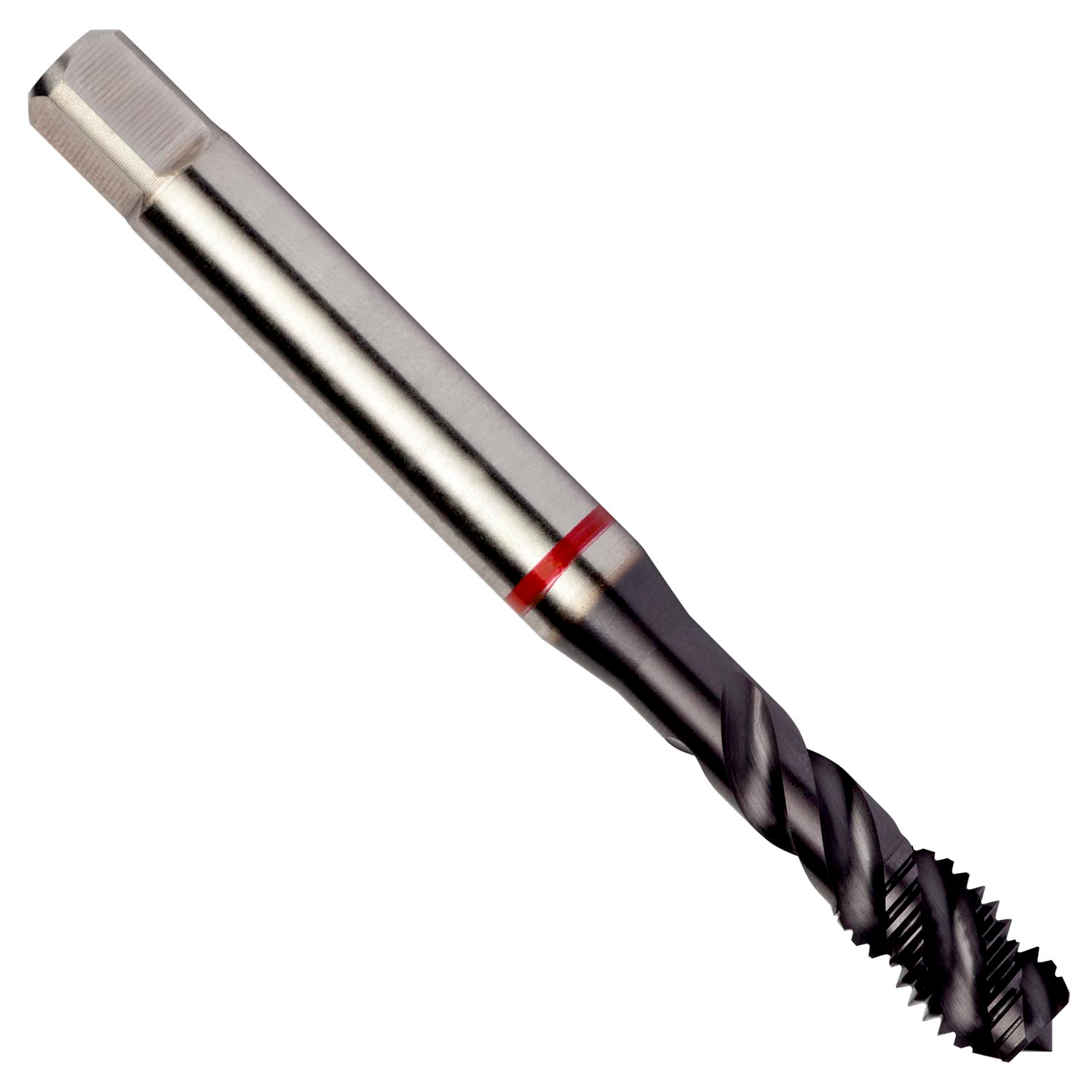

DIN ANSI Machine Tap, Red Shark for Alloy Steels, Spiral Flute

Material ID: 7350441


Spiral flute tap Red Shark with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 7/8 inch with 9 TPI and 2B class of fit with H6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.6970 inch shank and 0.5200 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7350441
