Dormer-Pramet
E8108-32
Material ID: 7350432
Sale price
$34.67 CAD
Regular price
$62.40 CAD
E8108-32

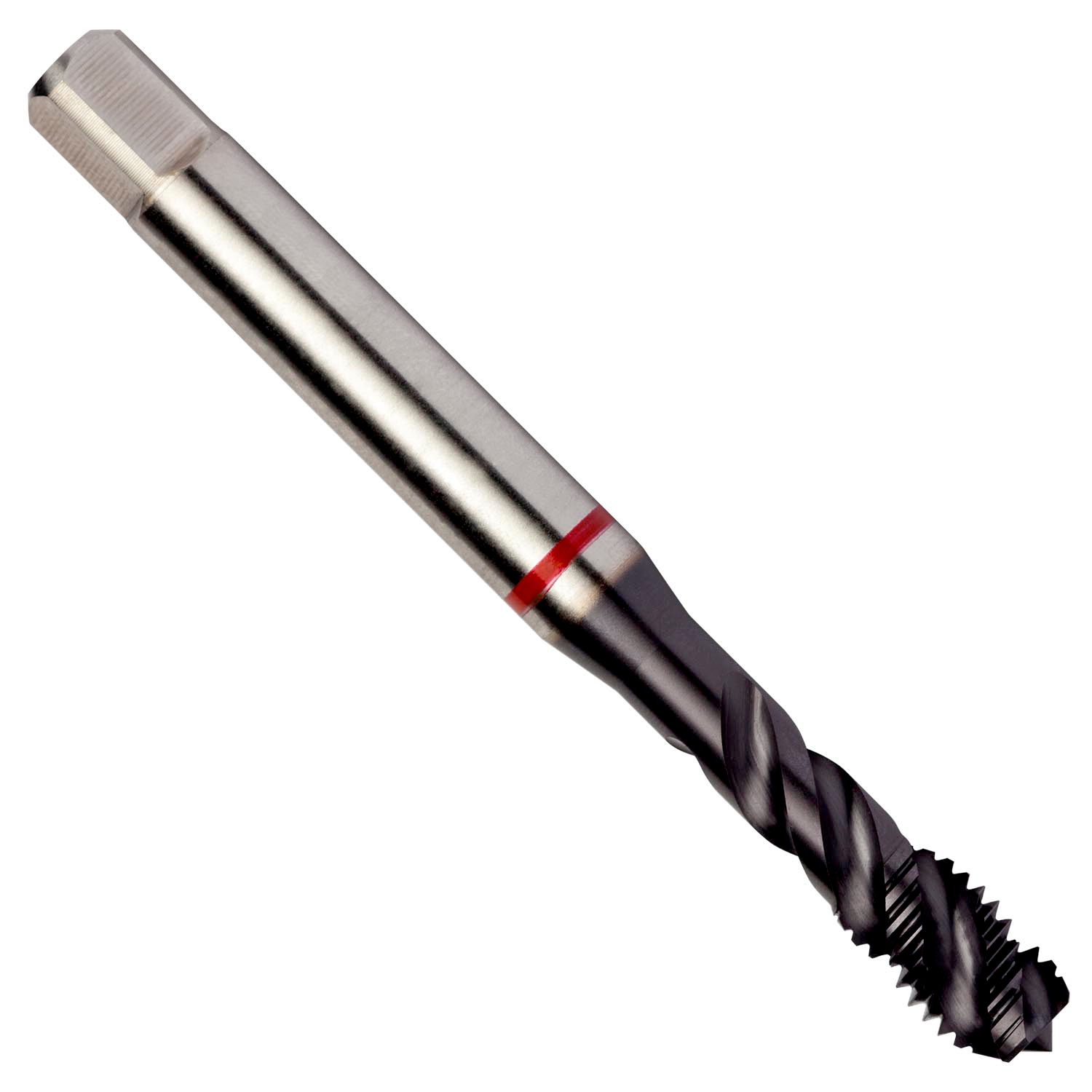

DIN ANSI Machine Tap, Red Shark for Alloy Steels, Spiral Flute
Material ID: 7350432
Spiral flute tap Red Shark with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 8 with 32 TPI and 2B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1680 inch shank and 0.1290 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating and 45° helix angle for 2.5xD blind hole threading in plain carbon, alloy and tool steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
