Dormer-Pramet
E627M16
Material ID: 7350422
Sale price
$100.00 CAD
Regular price
$180.00 CAD

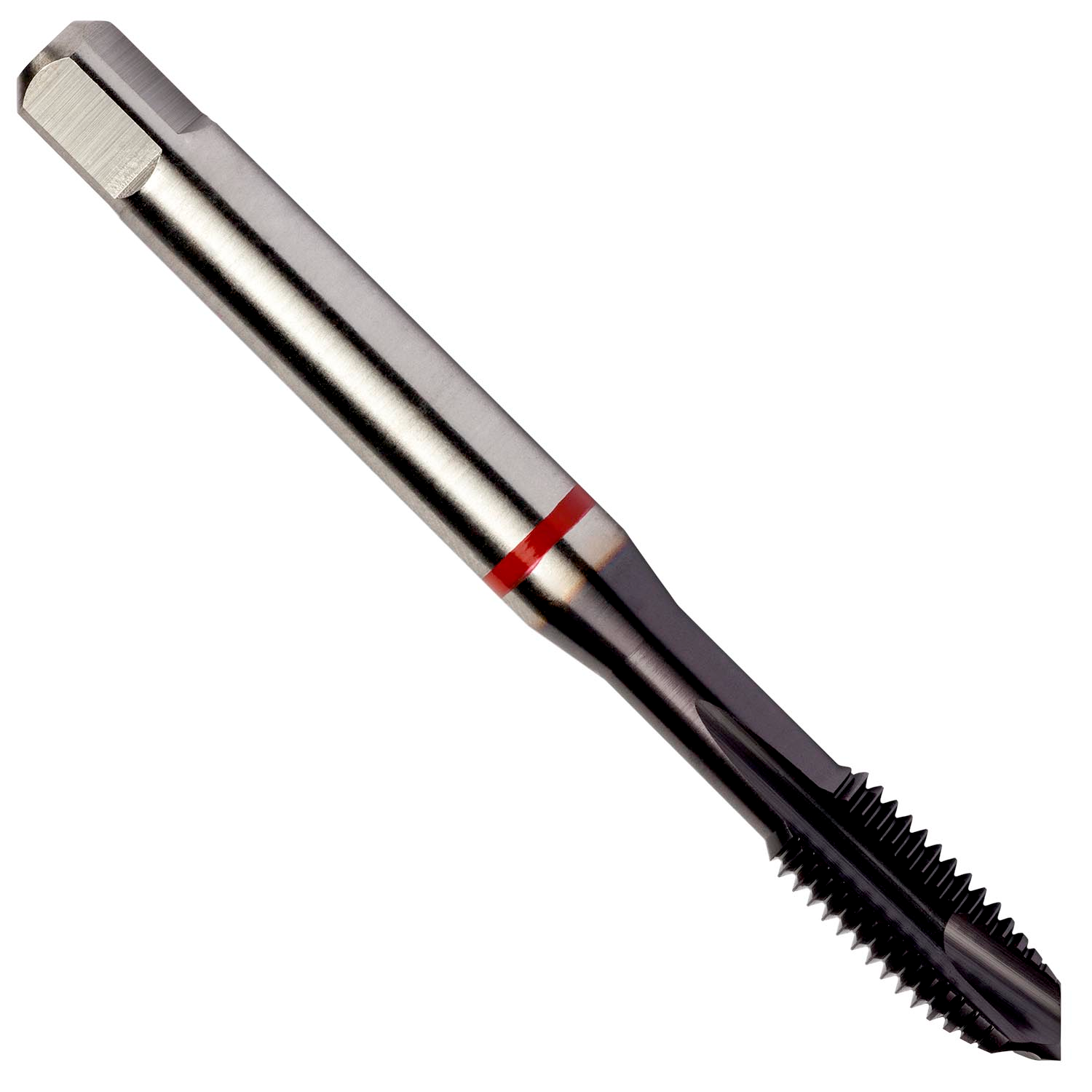

E627M16
DIN ANSI Machine Tap, Red Shark for Alloy Steels, Plug Style
Material ID: 7350422
Spiral point tap Red Shark with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M16 with 2.00 mm pitch and 6H class of fit with D7 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800 inch shank and 0.3580 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel
Package Quantity: 1
