Dormer-Pramet
E9115/16
Material ID: 7350406
Sale price
$31.56 CAD
Regular price
$56.80 CAD
E9115/16

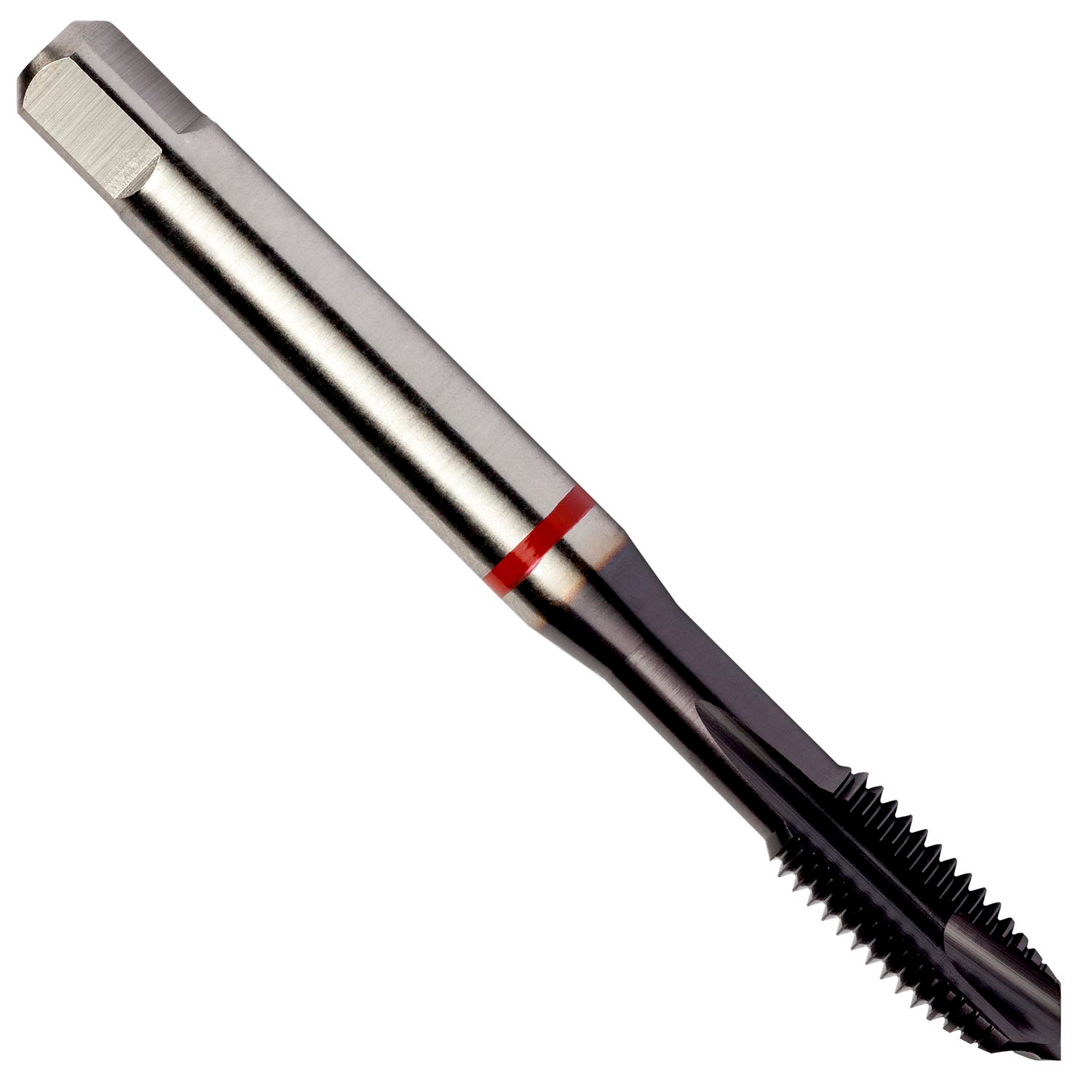

DIN ANSI Machine Tap, Red Shark for Alloy Steels, Plug Style
Material ID: 7350406
Spiral point tap Red Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 5/16 inch with 24 TPI and 2B class of fit with H4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180 inch shank and 0.2360 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
