Dormer-Pramet
E8115/8
Material ID: 7350400
Sale price
$88.89 CAD
Regular price
$160.00 CAD
E8115/8

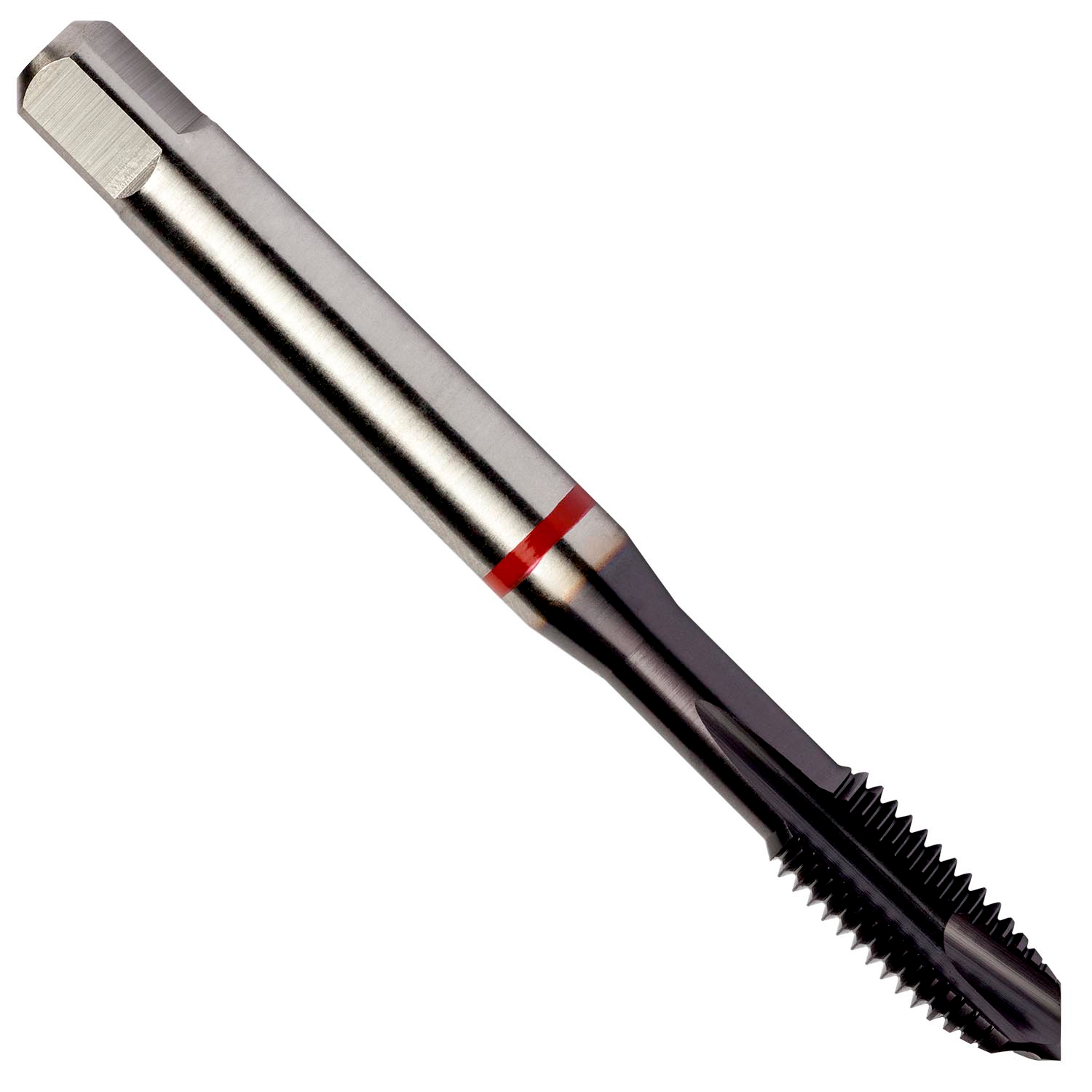

DIN ANSI Machine Tap, Red Shark for Alloy Steels, Plug Style
Material ID: 7350400
Spiral point tap Red Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 5/8 inch with 11 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800 inch shank and 0.3580 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
