Dormer-Pramet
E8111/4
Material ID: 7350395
Sale price
$28.94 CAD
Regular price
$52.10 CAD
E8111/4

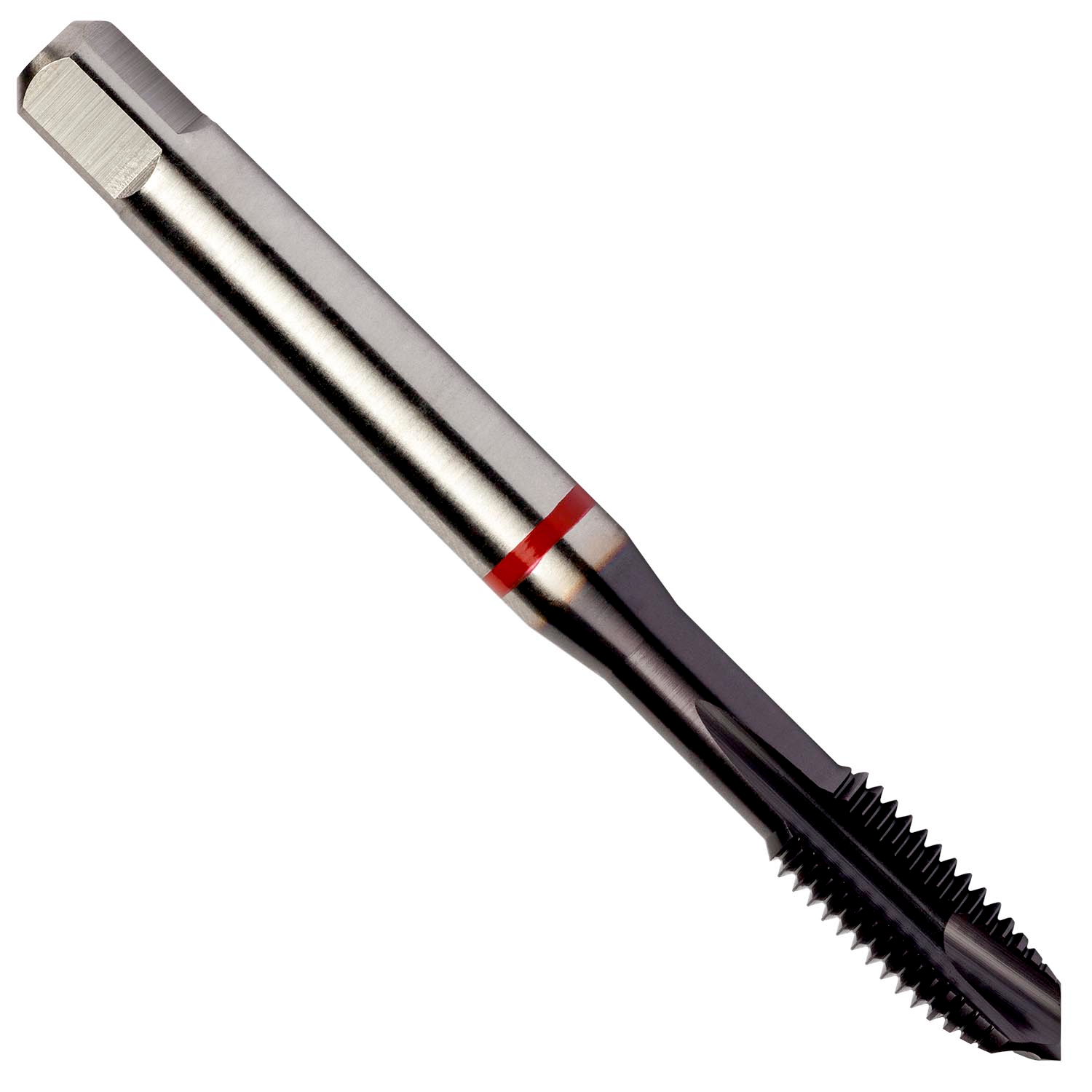

DIN ANSI Machine Tap, Red Shark for Alloy Steels, Plug Style
Material ID: 7350395
Spiral point tap Red Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Coarse thread UNC 1/4 inch with 20 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.2550 inch shank and 0.1890 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD through hole threading in plain carbon, alloy and tool steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
