E9121H6

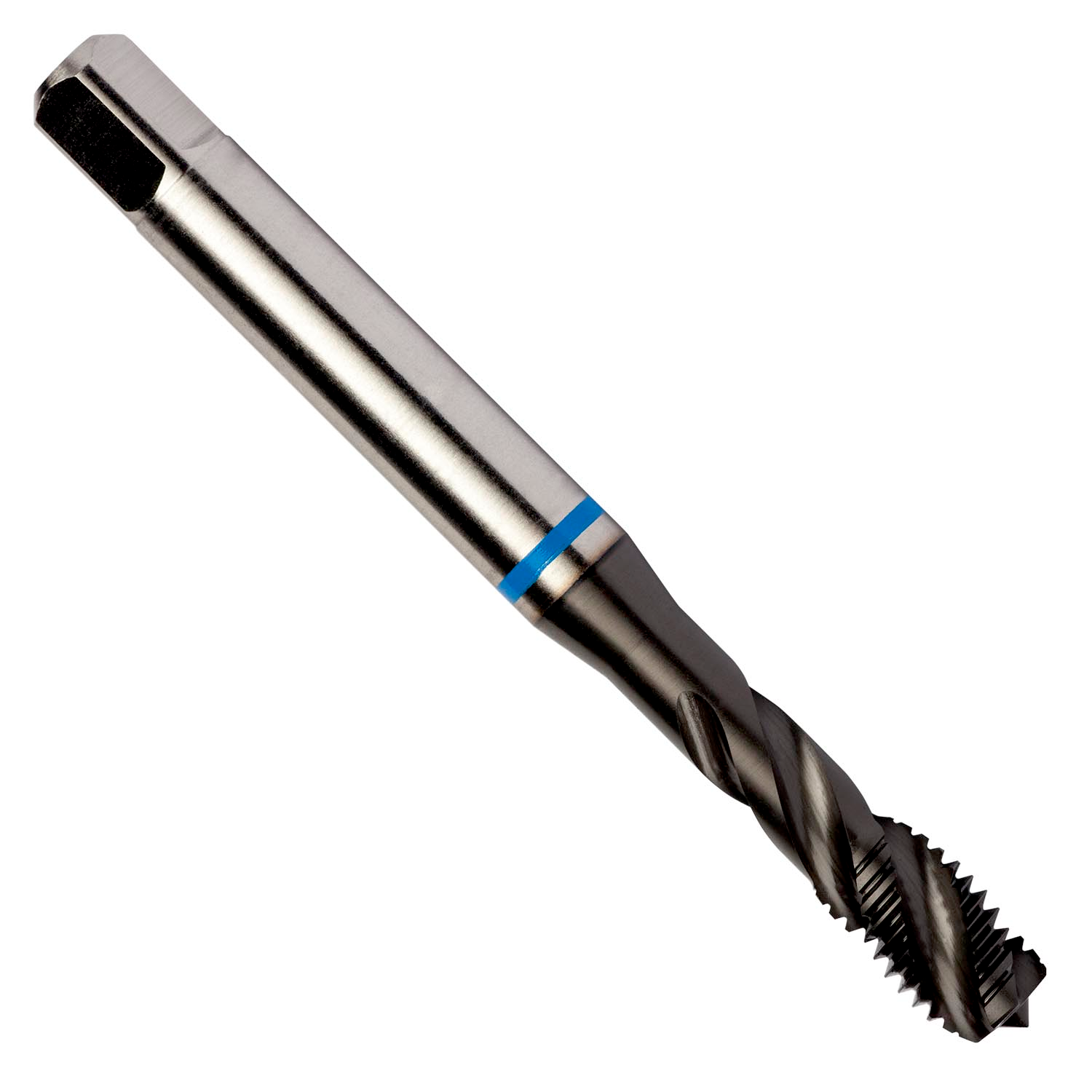

DIN ANSI Machine Tap, Blue Shark for Stainless Steel, Spiral Flute
Material ID: 7350372
Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1 inch with 12 TPI and 2B class of fit with H6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.8000 inch shank and 0.5970 inch square drive, powder metallurgical HSS-E with Super-B coating and 40° helix angle for 2.5xD blind hole threading in stainless steel
Package Quantity: 1
