Dormer-Pramet
E9121/2H5
Material ID: 7350364
Sale price
$76.11 CAD
Regular price
$137.00 CAD
E9121/2H5

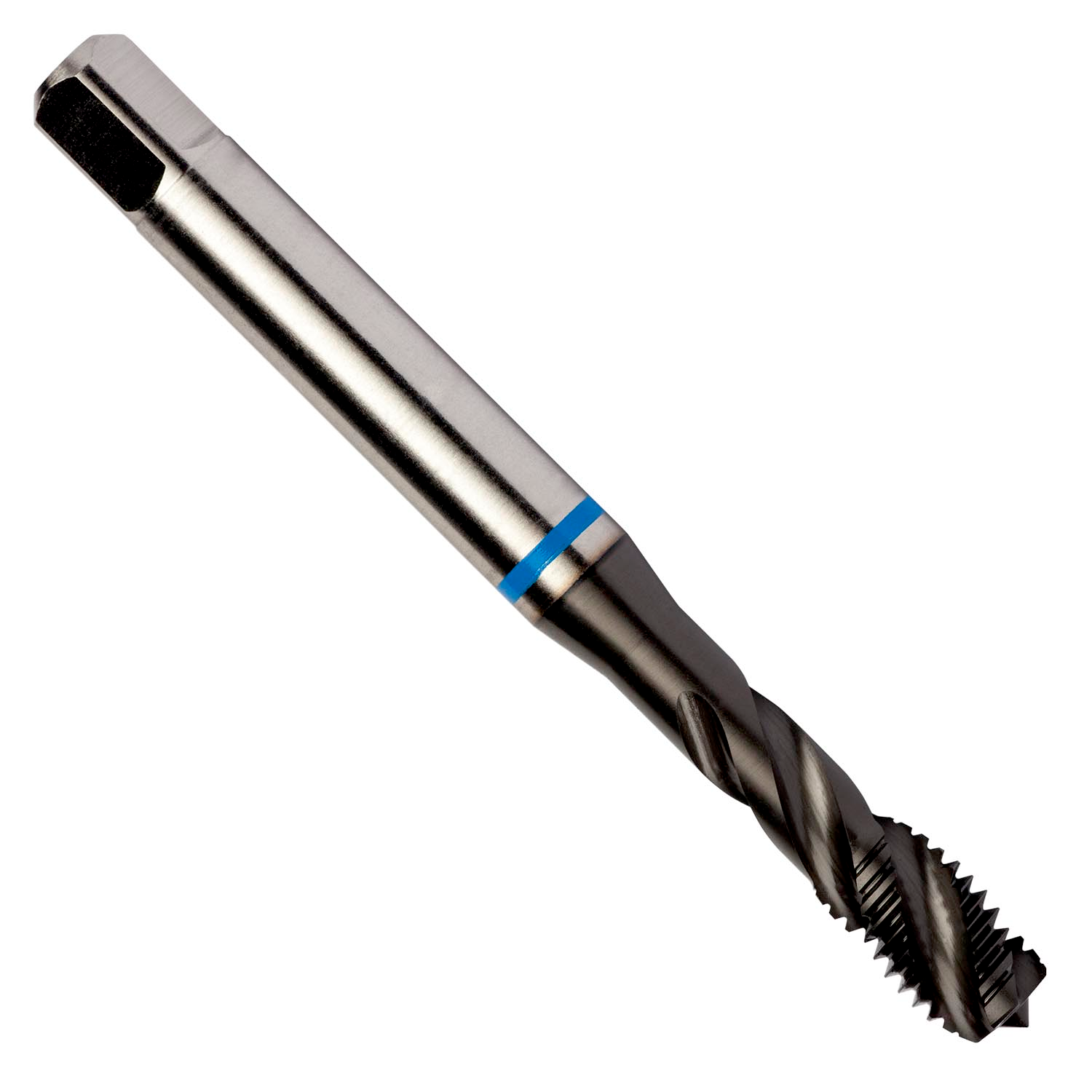

DIN ANSI Machine Tap, Blue Shark for Stainless Steel, Spiral Flute
Material ID: 7350364
Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 1/2 inch with 20 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670 inch shank and 0.2730 inch square drive, powder metallurgical HSS-E with Super-B coating and 40° helix angle for 2.5xD blind hole threading in stainless steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
