Dormer-Pramet
E8125/16H3
Material ID: 7350342
Sale price
$46.61 CAD
Regular price
$83.90 CAD
E8125/16H3

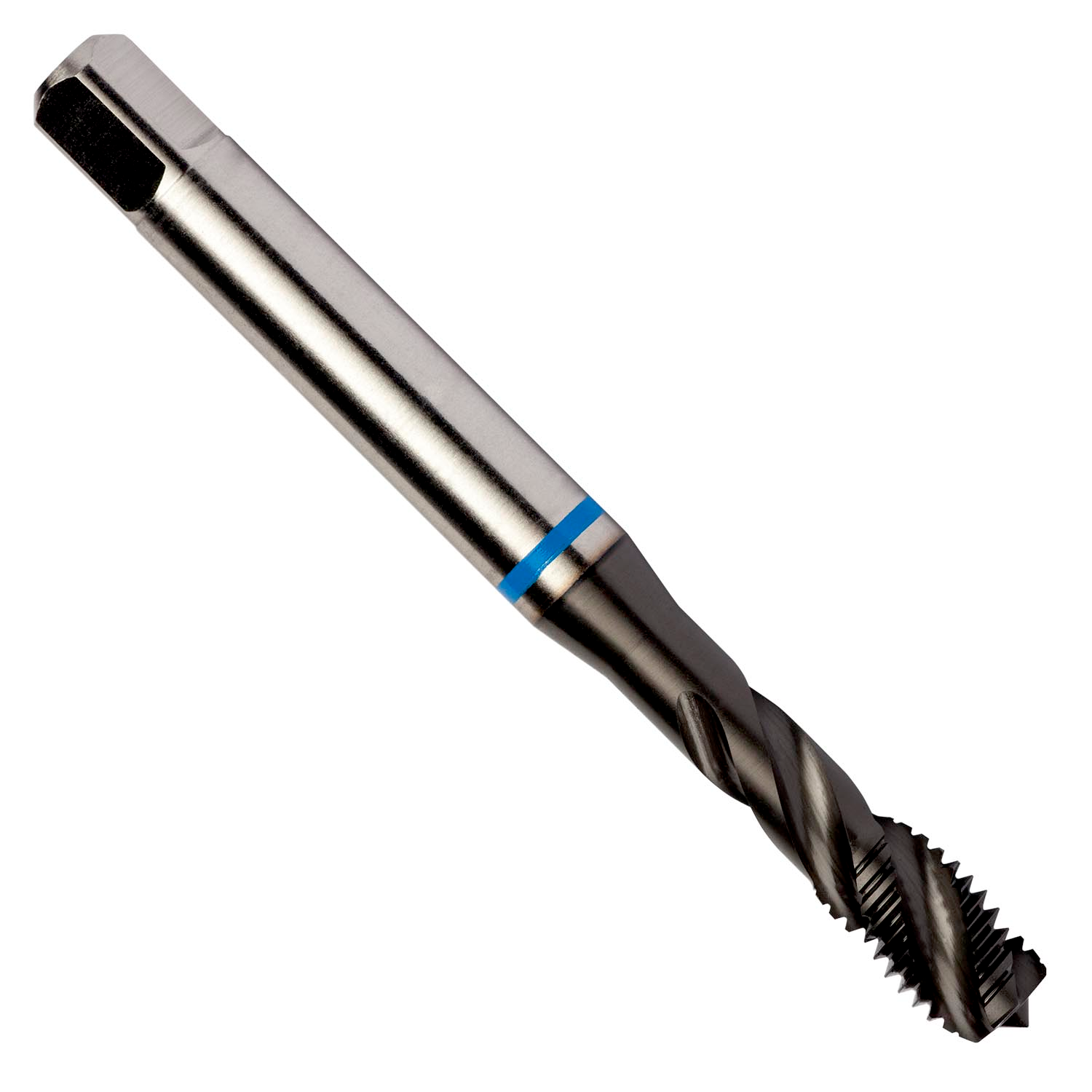

DIN ANSI Machine Tap, Blue Shark for Stainless Steel, Spiral Flute
Material ID: 7350342
Spiral flute tap Blue Shark with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 5/16 inch with 18 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180 inch shank and 0.2360 inch square drive, powder metallurgical HSS-E with Super-B coating and 40° helix angle for 2.5xD blind hole threading in stainless steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
