Dormer-Pramet
E629M4
Material ID: 7350317
Sale price
$28.78 CAD
Regular price
$51.80 CAD
E629M4

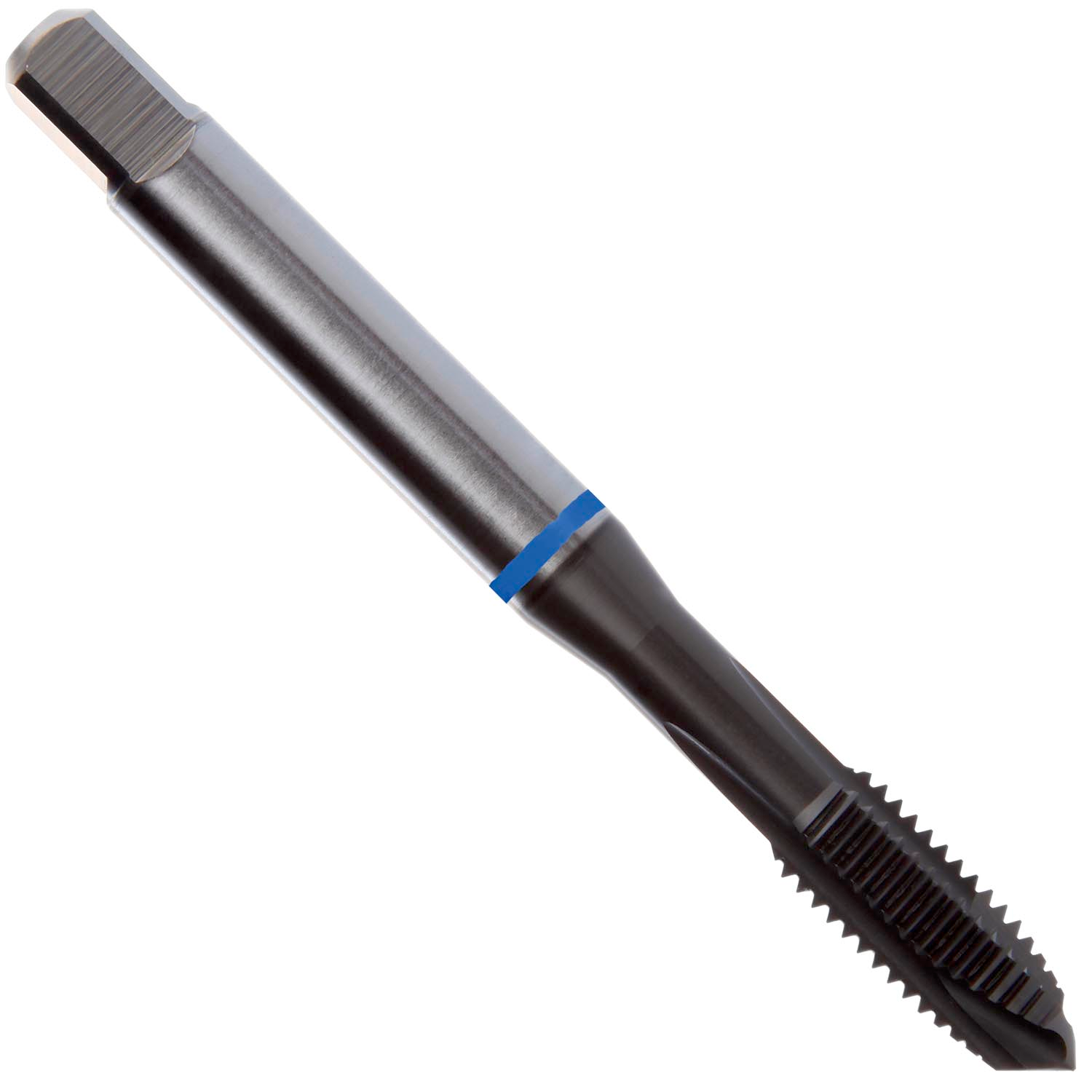

DIN ANSI Machine Tap, Blue Shark for Stainless Steel, Plug Style
Material ID: 7350317
Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for ISO-Metric thread M4 with 0.70 mm pitch and 6H class of fit with D4 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1680 inch shank and 0.1290 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
