Dormer-Pramet
E9135/8H3
Material ID: 7350310
Sale price
$86.67 CAD
Regular price
$156.00 CAD
E9135/8H3

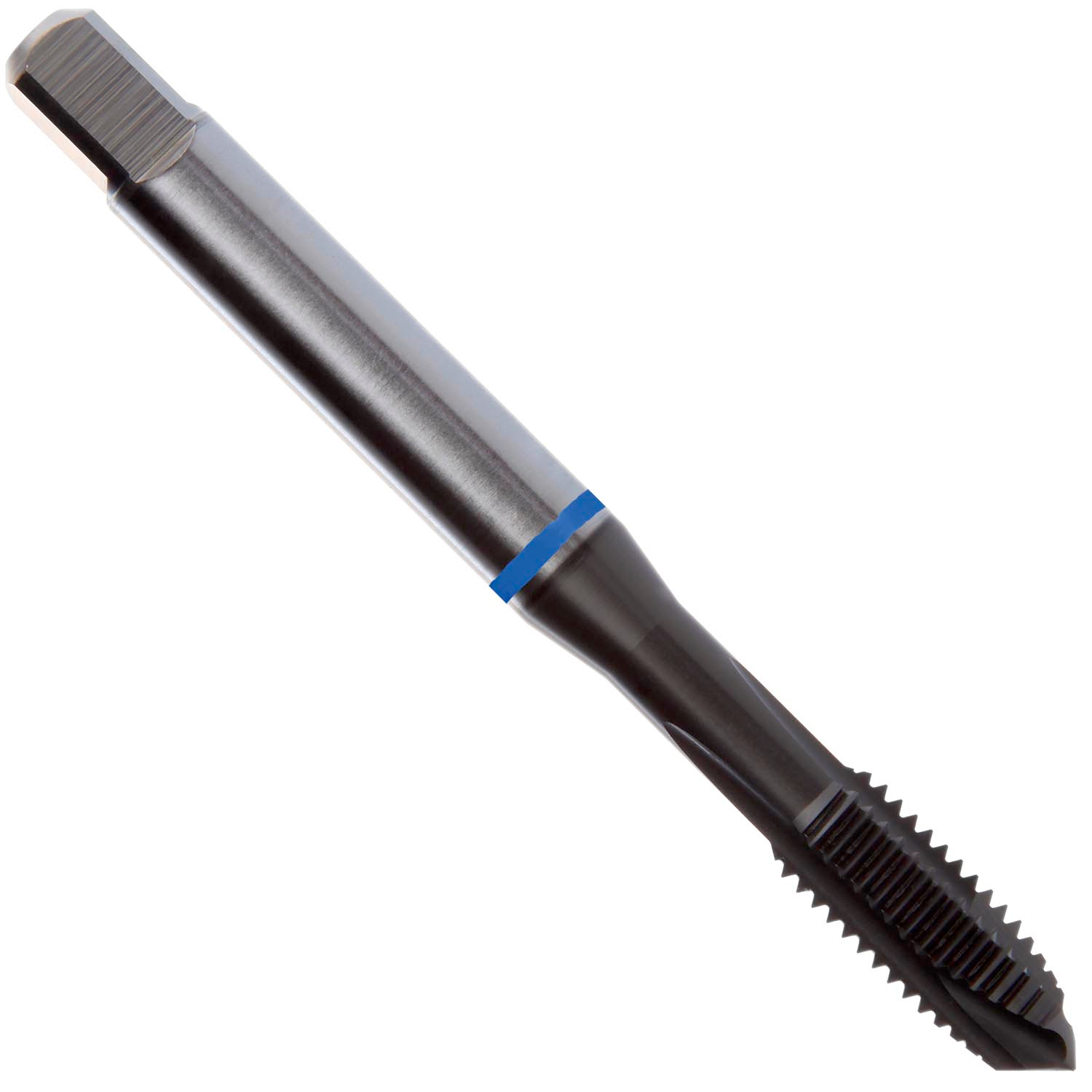

DIN ANSI Machine Tap, Blue Shark for Stainless Steel, Plug Style
Material ID: 7350310
Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 5/8 inch with 18 TPI and 3B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800 inch shank and 0.3580 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
