Dormer-Pramet
E91310-32
Material ID: 7350299
Sale price
$24.58 CAD
Regular price
$44.25 CAD
E91310-32

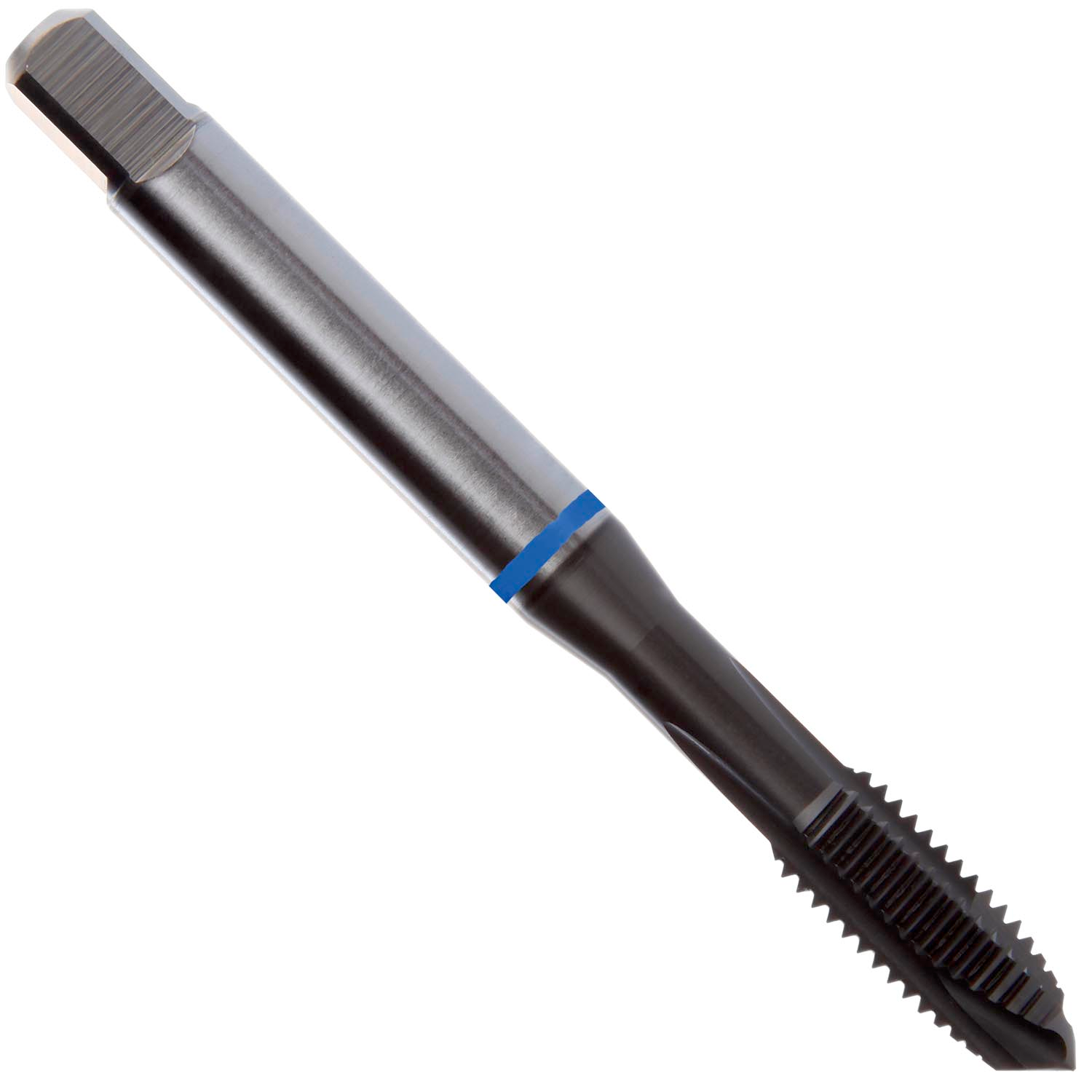

DIN ANSI Machine Tap, Blue Shark for Stainless Steel, Plug Style
Material ID: 7350299
Spiral point tap Blue Shark with chamfer form B with a 3.5-5xP second lead, for Unified National Fine thread UNF 10 with 32 TPI and 2B class of fit with H3 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.1940 inch shank and 0.1500 inch square drive, powder metallurgical HSS-E with Super-B coating for 2.5xD through hole threading in stainless steel
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
