E771M14X1.5

E771M14X1.5

$133.33 CAD $240.00 CAD
Skip to product information
E771M14X1.5
E771M14X1.5

Dormer-Pramet

E771M14X1.5

Material ID: 7350277

$133.33 CAD $240.00 CAD

E771M14X1.5

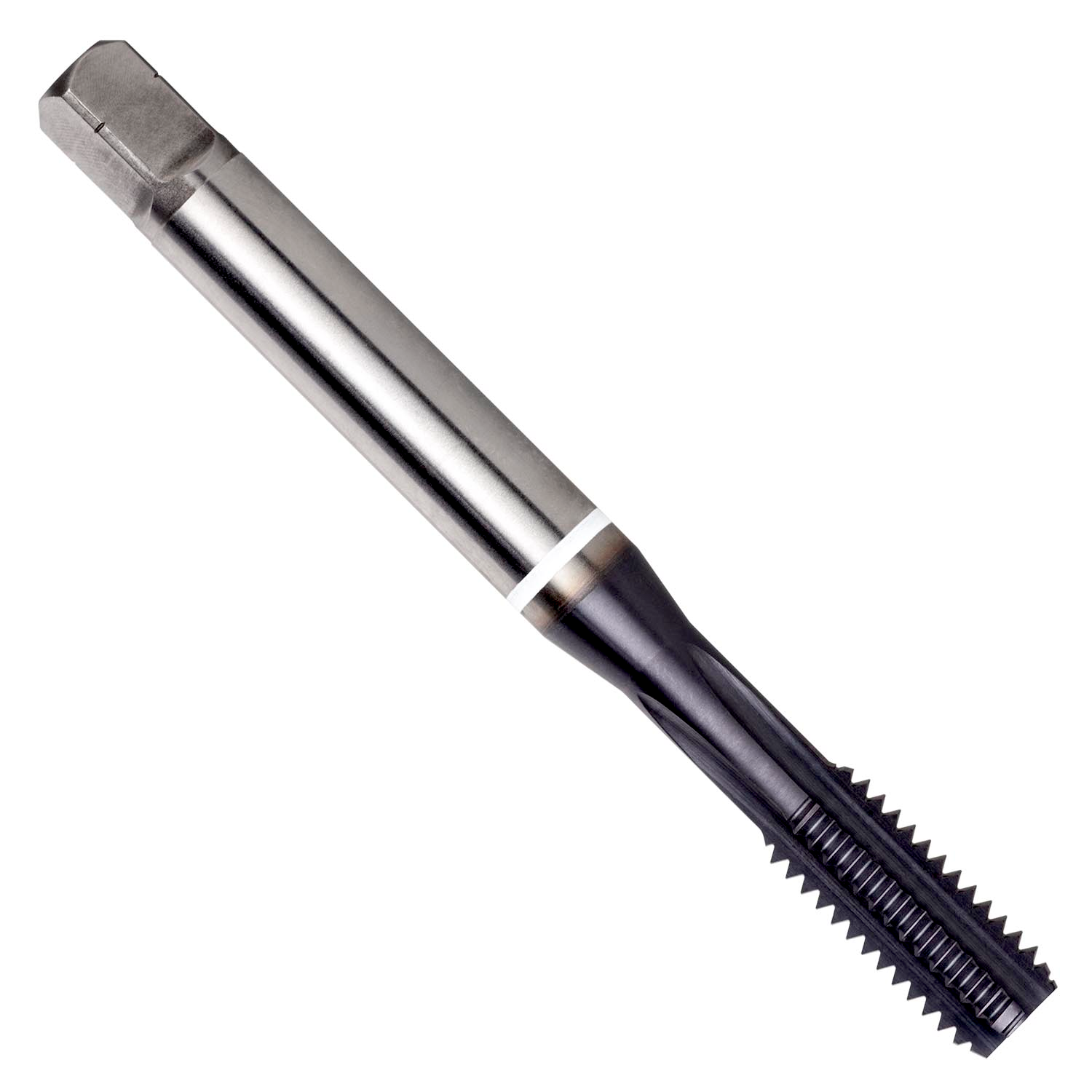

DIN ANSI Machine Tap, White Shark for Cast Iron, Full Bottoming

Material ID: 7350277


Straight flute tap White Shark with chamfer form E with a 1.5-2xP bottoming lead, for ISO-Metric Fine thread M14 with 1.50 mm pitch and D7 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4290 inch shank and 0.3200 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7350277
