E630M8

E630M8

$29.61 CAD $53.30 CAD
Skip to product information
E630M8
E630M8

Dormer-Pramet

E630M8

Material ID: 7350251

$29.61 CAD $53.30 CAD

E630M8

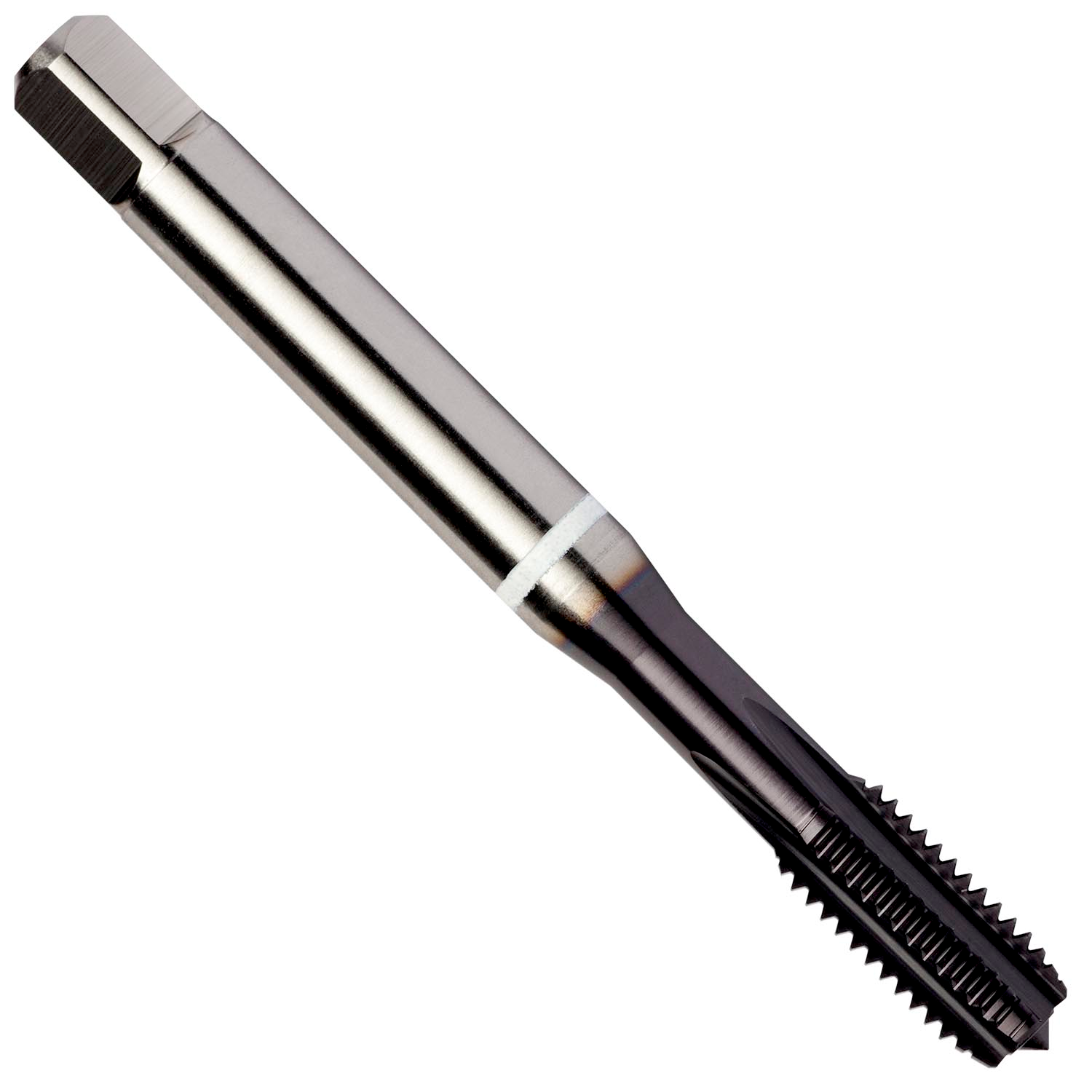

DIN ANSI Machine Tap, White Shark for Cast Iron, Semi Bottoming

Material ID: 7350251


Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for ISO-Metric thread M8 with 1.25 mm pitch and 6H class of fit with D5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180 inch shank and 0.2360 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7350251
