Dormer-Pramet
E8153/8
Material ID: 7350233
Sale price
$71.11 CAD
Regular price
$128.00 CAD
E8153/8

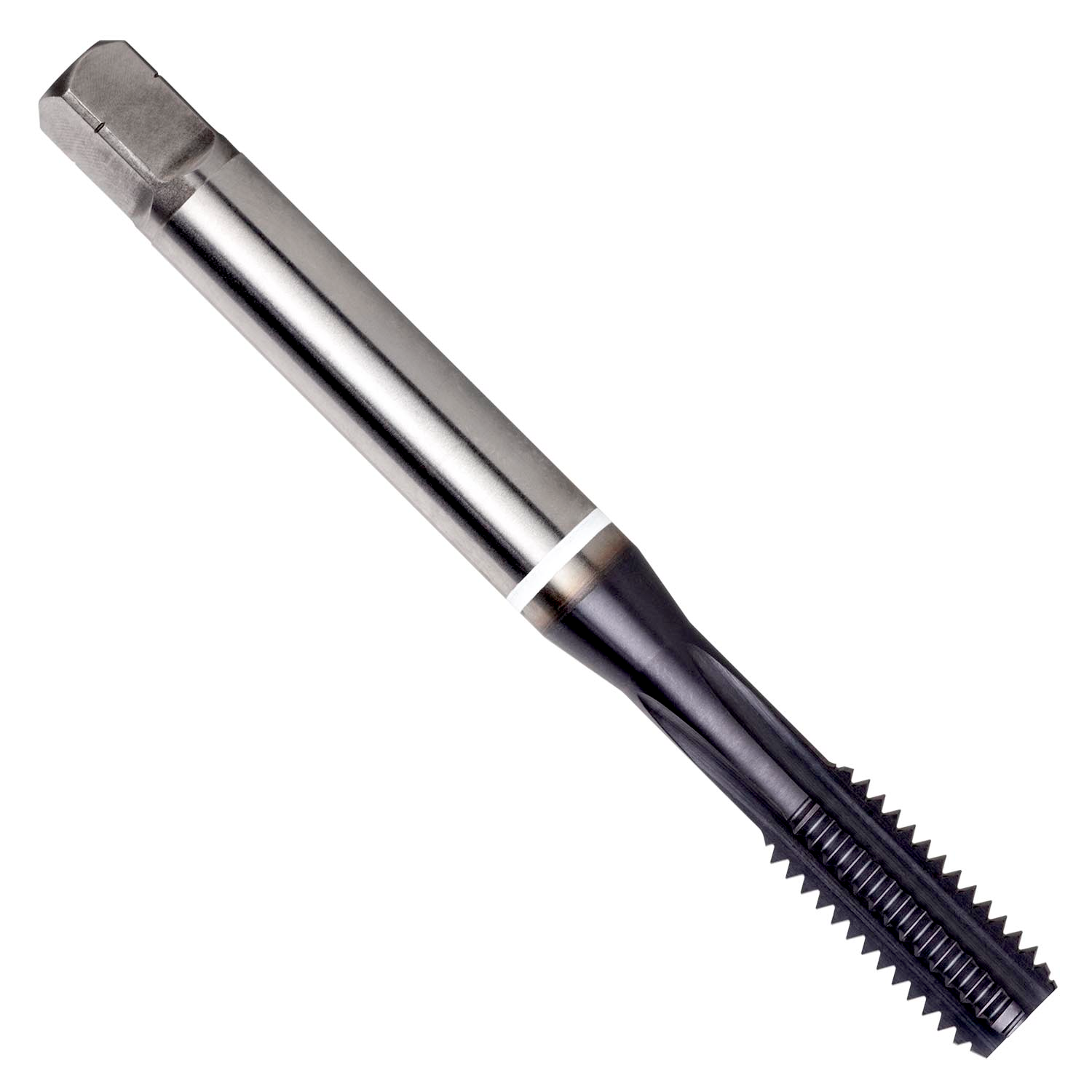

DIN ANSI Machine Tap, White Shark for Cast Iron, Full Bottoming
Material ID: 7350233
Straight flute tap White Shark with chamfer form E with a 1.5-2xP bottoming lead, for Unified National Coarse thread UNC 3/8 inch with 16 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3810 inch shank and 0.2840 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2.5xD blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
