E9147/8

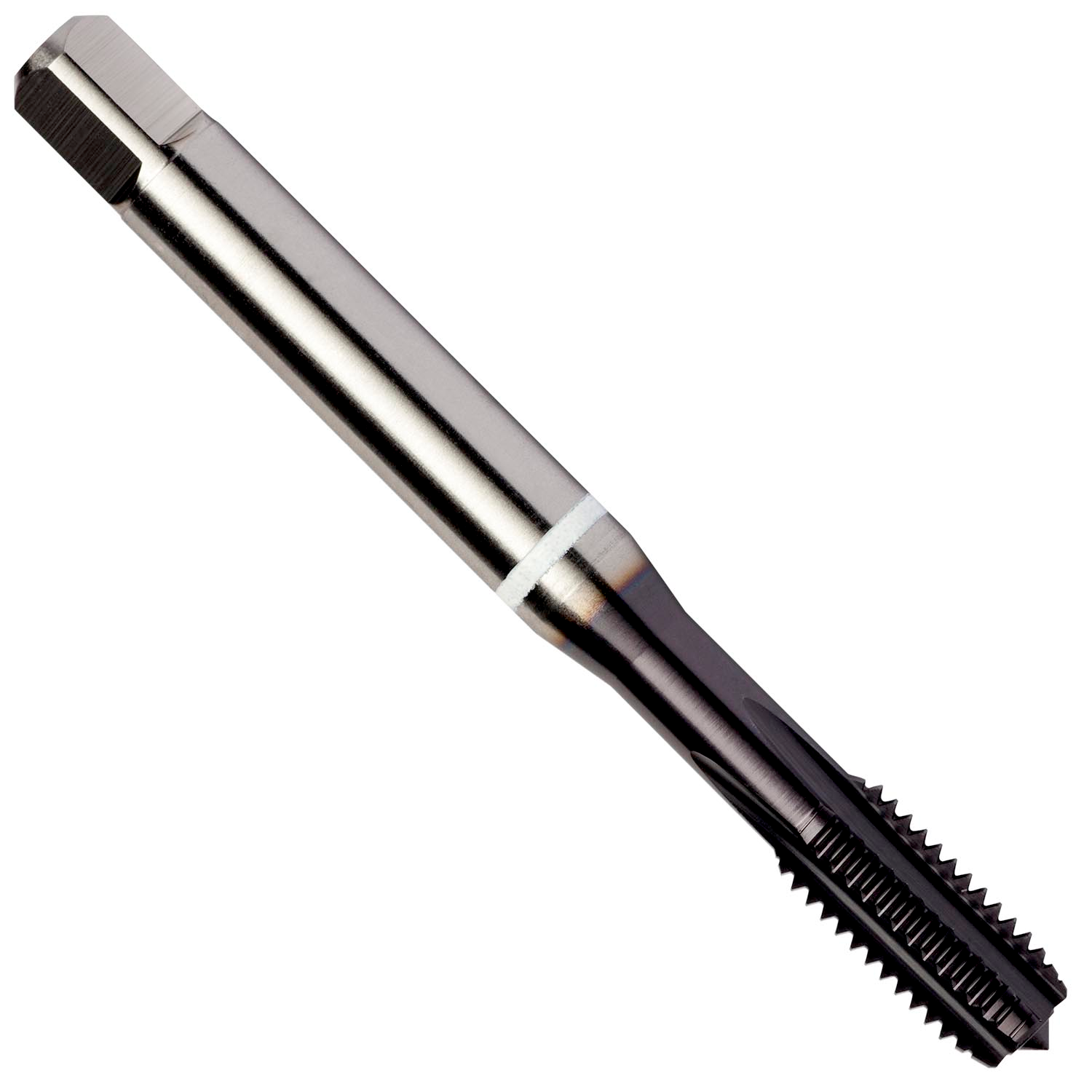

DIN ANSI Machine Tap, White Shark for Cast Iron, Semi Bottoming

Material ID: 7350230


Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 7/8 inch with 14 TPI and 2B class of fit with H6 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.6970 inch shank and 0.5200 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7350230
