E9145/8

E9145/8

$55.56 CAD $100.00 CAD
Skip to product information
E9145/8
E9145/8

Dormer-Pramet

E9145/8

Material ID: 7350228

$55.56 CAD $100.00 CAD

E9145/8

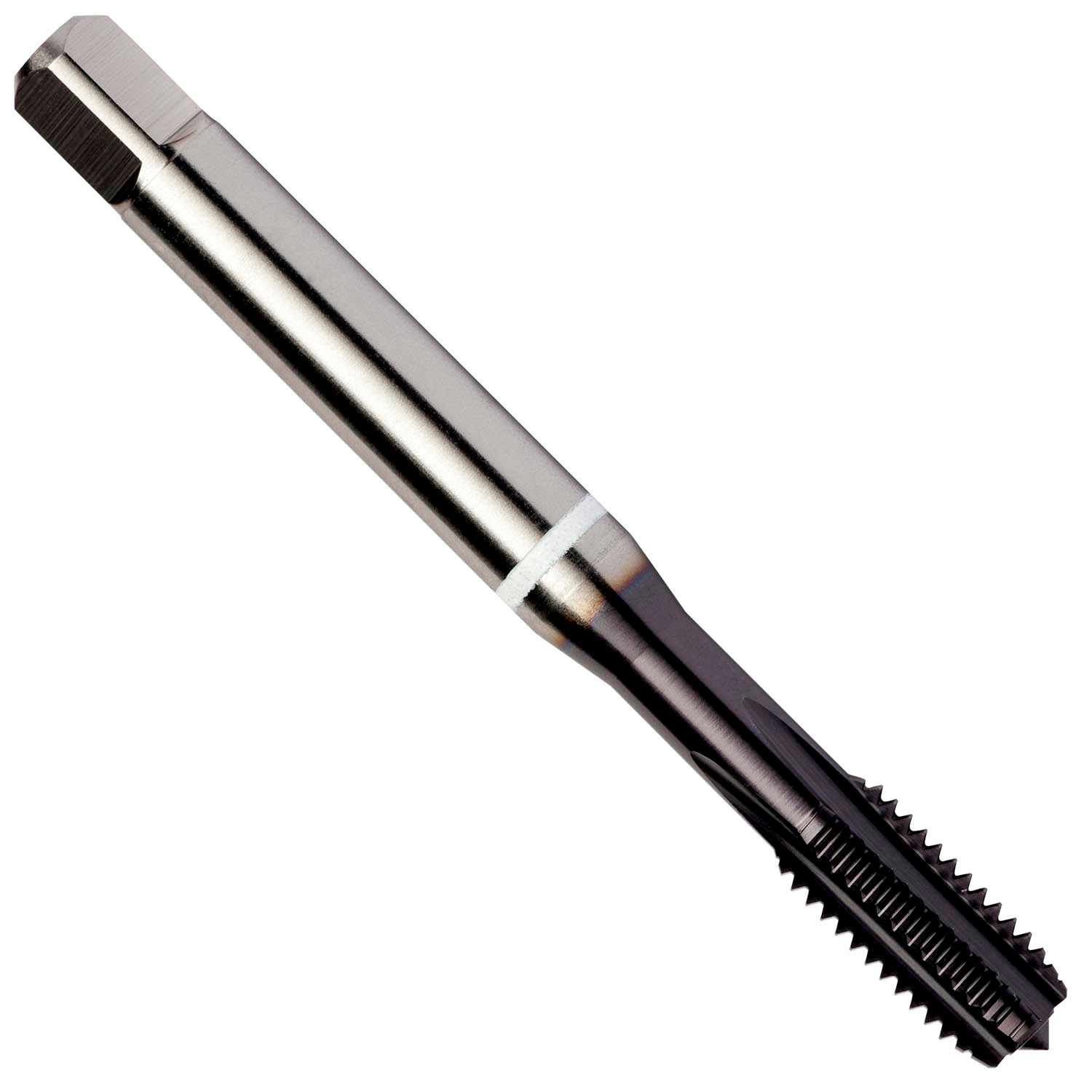

DIN ANSI Machine Tap, White Shark for Cast Iron, Semi Bottoming

Material ID: 7350228


Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 5/8 inch with 18 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.4800 inch shank and 0.3580 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7350228
