Dormer-Pramet
E9145/16
Material ID: 7350224
Sale price
$29.61 CAD
Regular price
$53.30 CAD
E9145/16

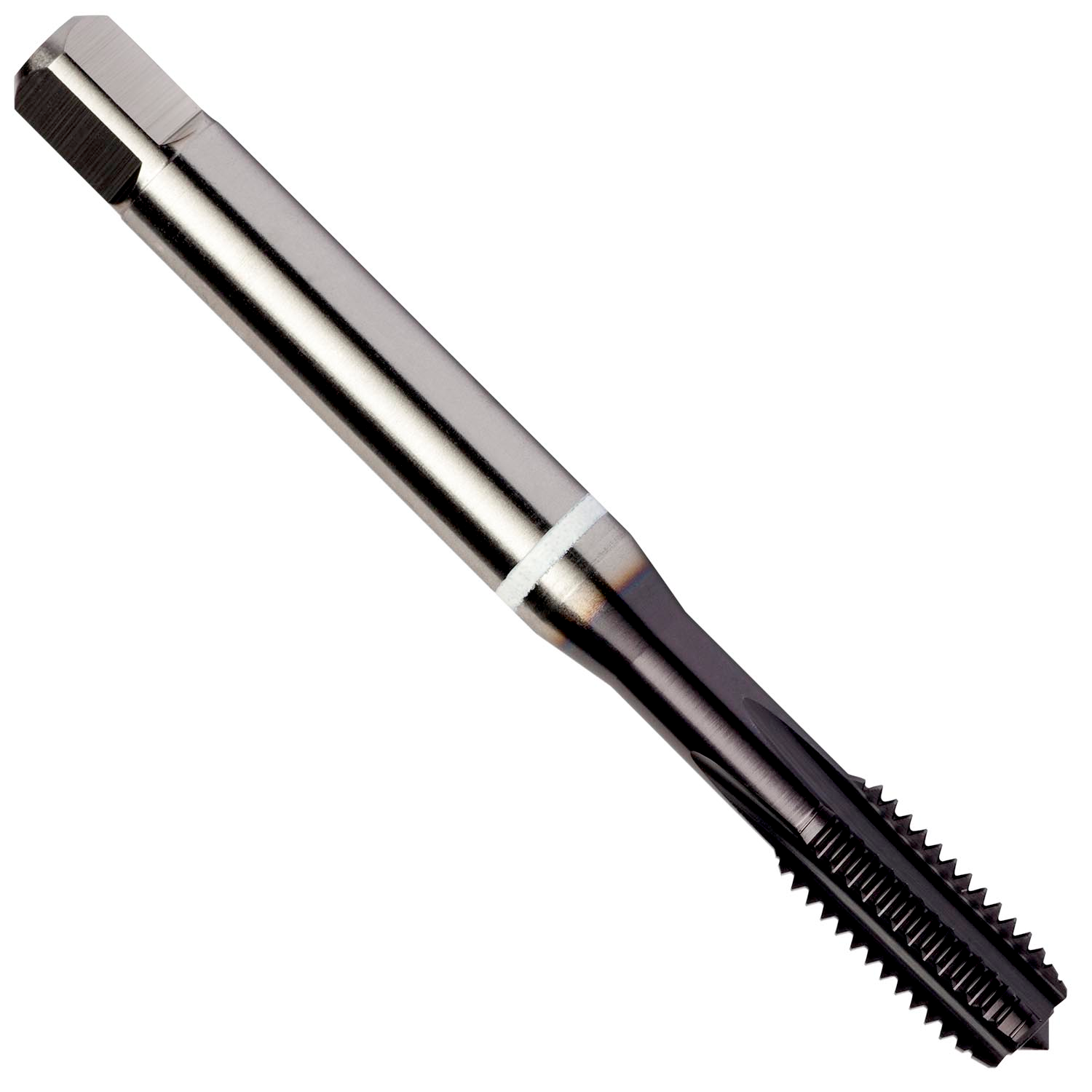

DIN ANSI Machine Tap, White Shark for Cast Iron, Semi Bottoming
Material ID: 7350224
Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 5/16 inch with 24 TPI and H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3180 inch shank and 0.2360 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
