Dormer-Pramet
E8141/2
Material ID: 7350207
Sale price
$41.00 CAD
Regular price
$73.80 CAD
E8141/2

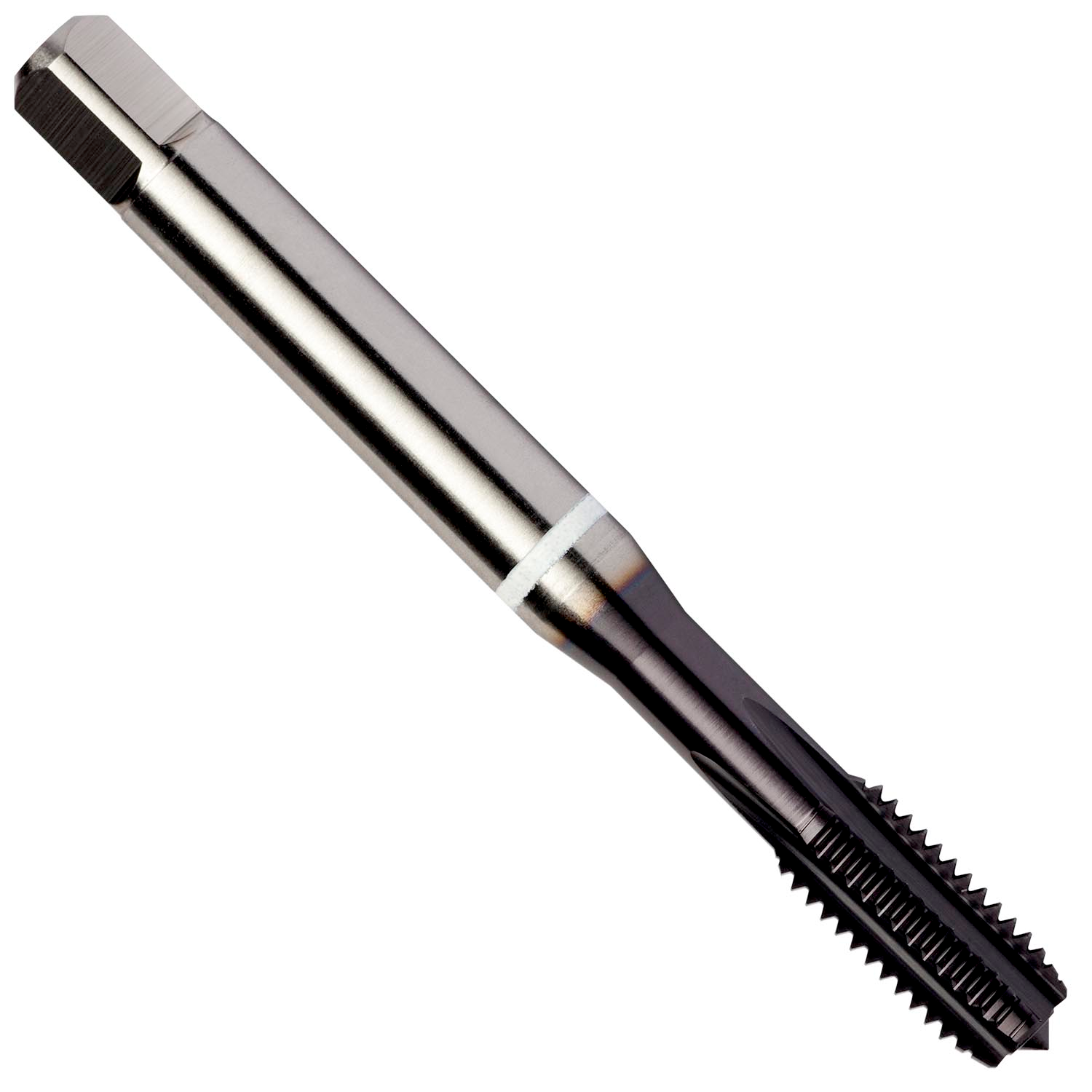

DIN ANSI Machine Tap, White Shark for Cast Iron, Semi Bottoming
Material ID: 7350207
Straight flute tap White Shark with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 1/2 inch with 13 TPI and 2B class of fit with H5 pitch diameter limits, dimensions according to DIN/ANSI standard with 0.3670 inch shank and 0.2730 inch square drive, powder metallurgical HSS-E with TiAlN-Top coating for 2xD through or blind hole threading in gray, malleable, ductile and compacted graphite cast-iron and polymers
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
