Dormer-Pramet

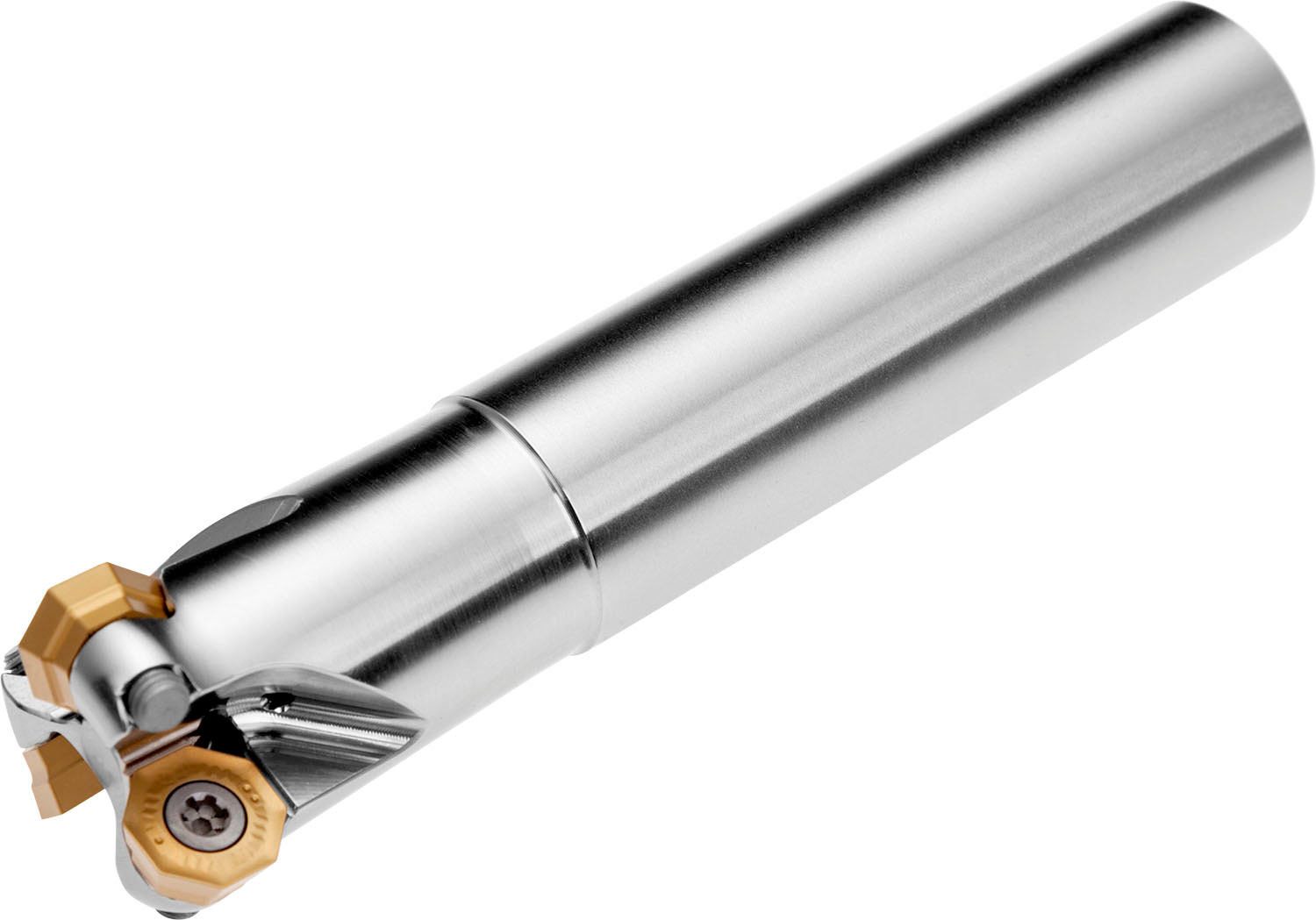

Copy face mill with positve/negative geometry which utilises 3 of OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 32.6 mm with 45 / 90° approach angle and 32 mm parallel shank according to DIN 1835A, 45 mm functional and 150 mm overall length, through coolant for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7342890
