Dormer-Pramet

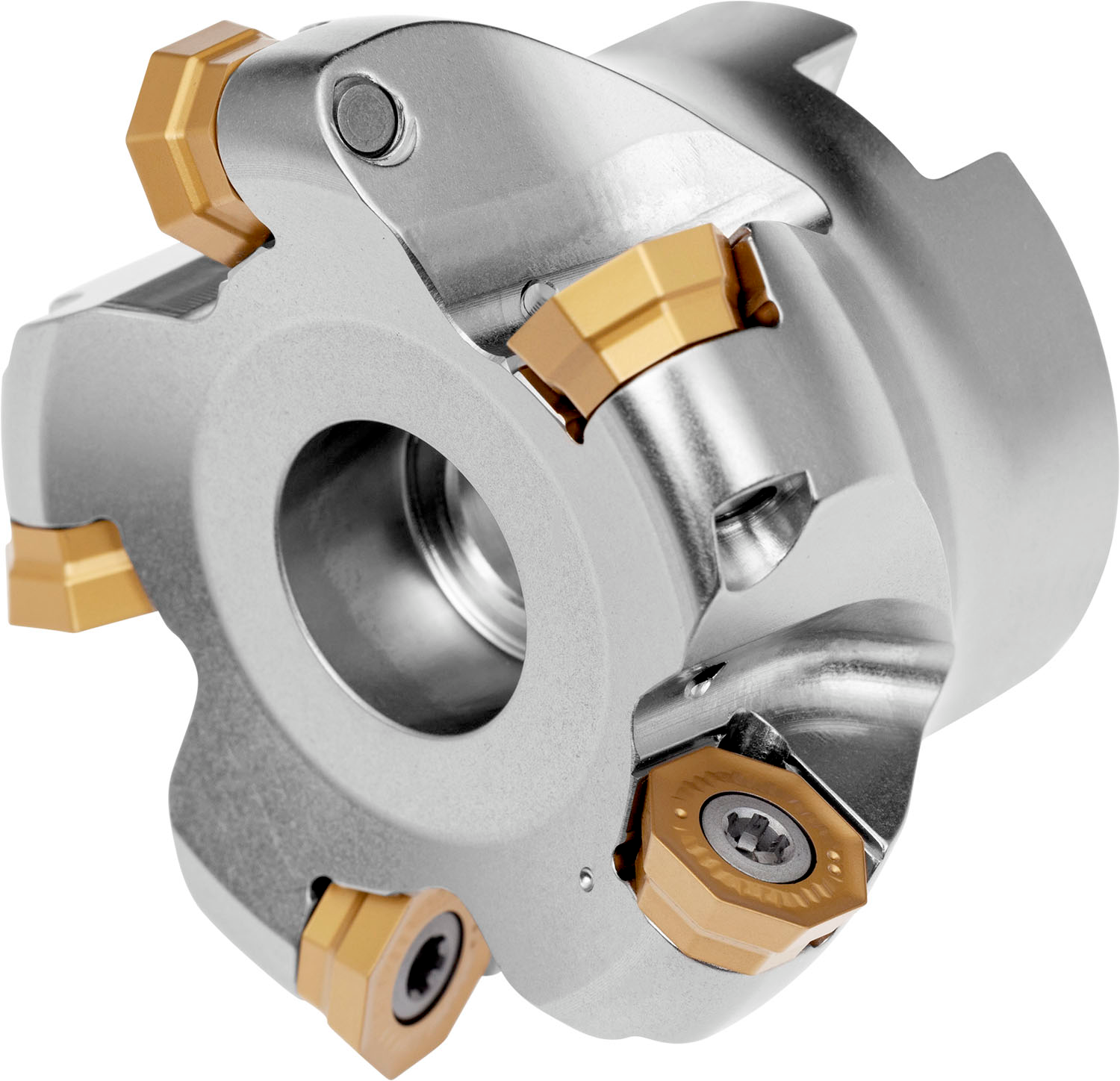

Copy face mill with positve/negative geometry which utilises 8 off OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 117.6mm with 45 / 90° approach angle and 40mm connection bore according to DIN 8030-A, 63mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0)mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centres, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7342888
