Dormer-Pramet

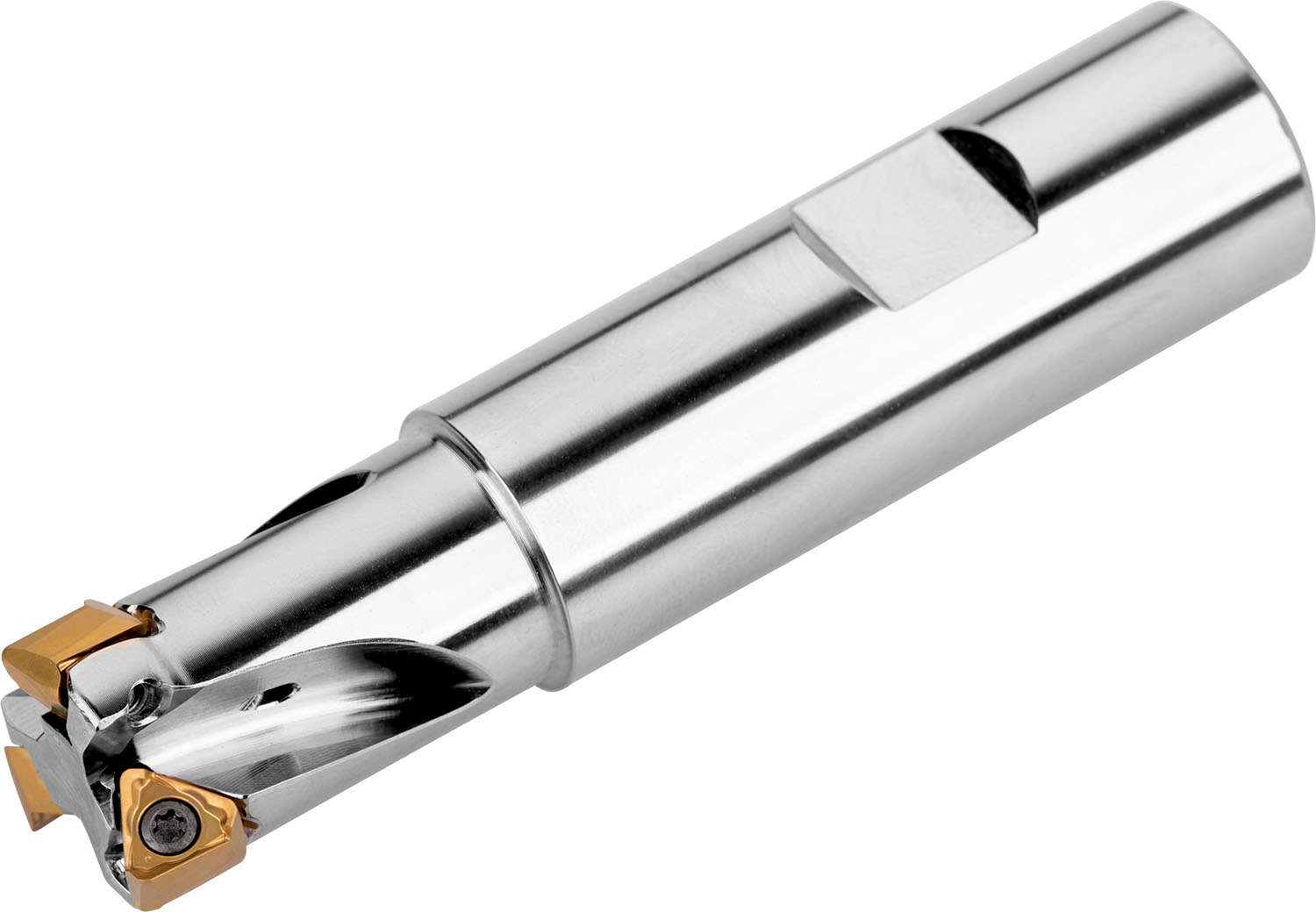

Shoulder face mill with double negative geometry which utilises 4 of TN.. 10.... double-sided inserts, cutting diameter 1.000 inch with 90° approach angle and 1.000 inch Weldon shank according to DIN 1835B, 1.500 inch functional and 4.000 inch overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of .197 inch

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7276928
