Dormer-Pramet

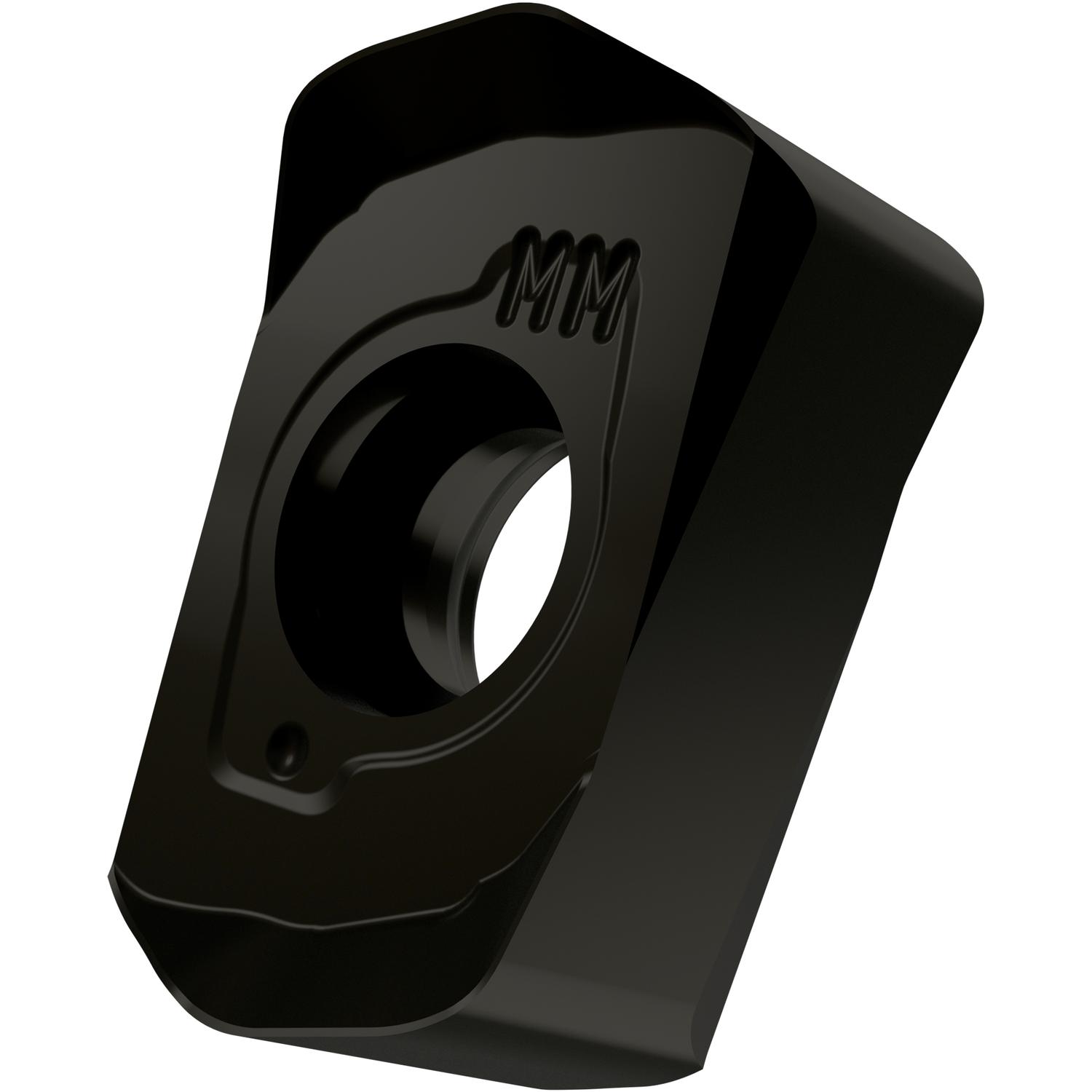

Double-sided milling insert BN.. 10.., 82° parallelogram and high-feed design for a maximum depth of cut of 1.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-G and MM geometry with rounded cutting edges and facet, M9340 MT-CVD coated WC-Co carbide within ISO-grade ranges M30 -M40 and S15 -S20 for machining of stainless-steel and superalloy with high feed cutters SBN10

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7253621
