Dormer-Pramet

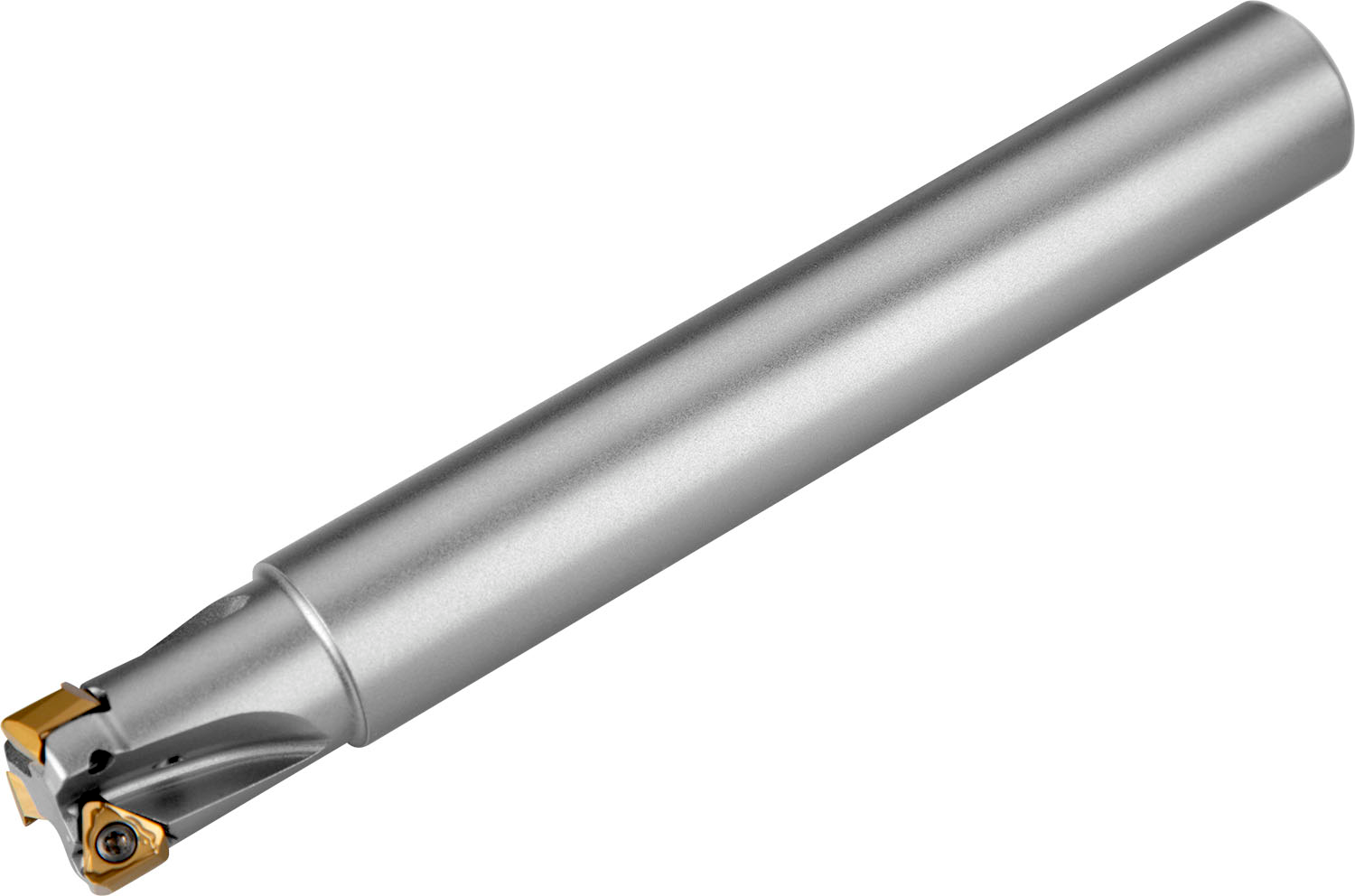

Shoulder face mill with double negative geometry which utilises 3 of TN.. 10.... double-sided inserts, cutting diameter 20 mm with 90° approach angle and 20 mm parallel shank according to DIN 1835A, 29 mm functional and 150 mm overall length, through coolant for face milling, shallow shoulder milling and shallow slot milling with a maximum depth of cut of 5.0 mm

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7174636
