Dormer-Pramet
E2863/8
Material ID: 7174120
Sale price
$136.67 CAD
Regular price
$246.00 CAD
E2863/8

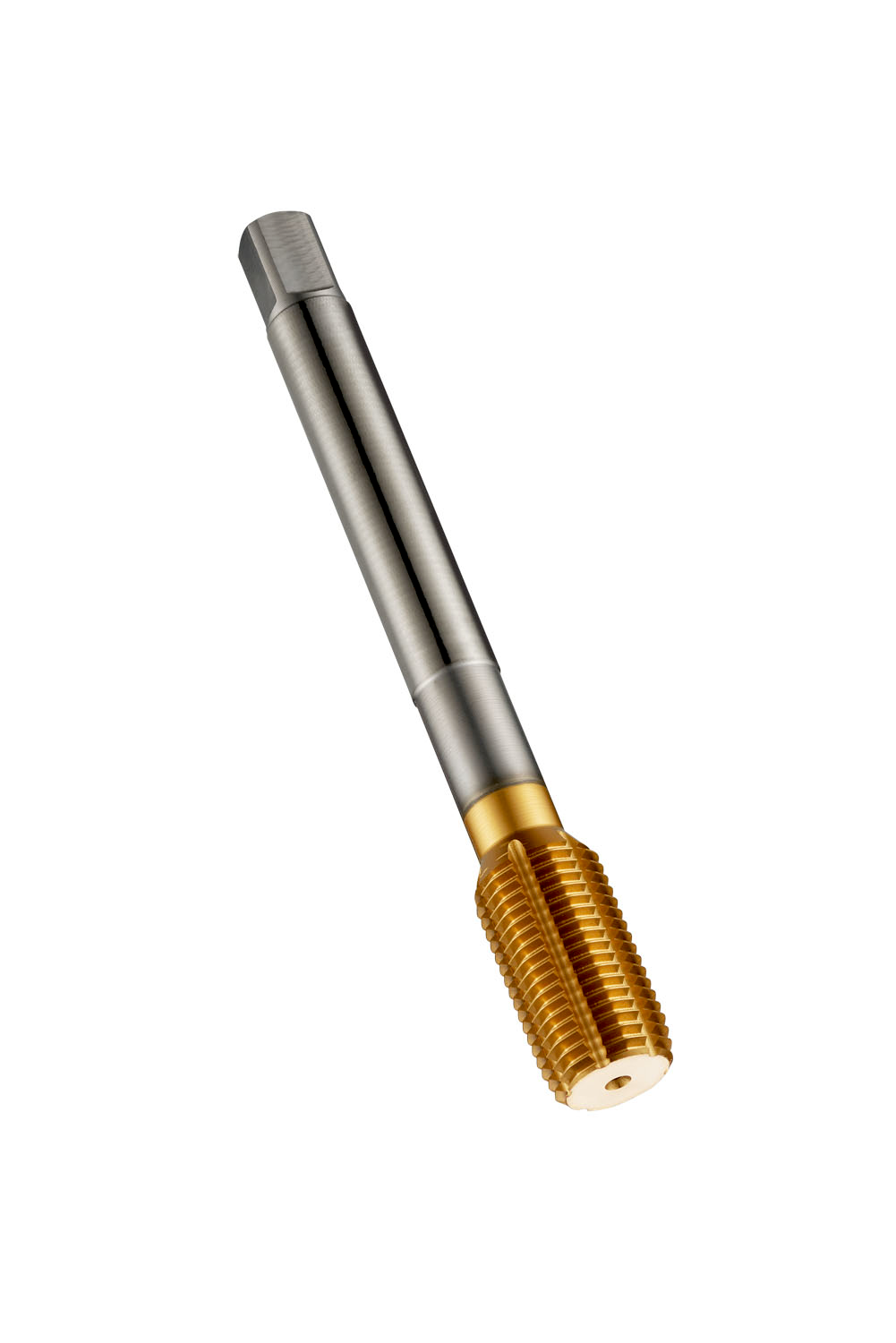

UNF Machine Forming Tap, Oil Grooves
Material ID: 7174120
Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Fine thread UNF 3/8 inch with 24 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 10.0 mm shank and 8.0 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium
Package Quantity: 1
For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:
