Dormer-Pramet

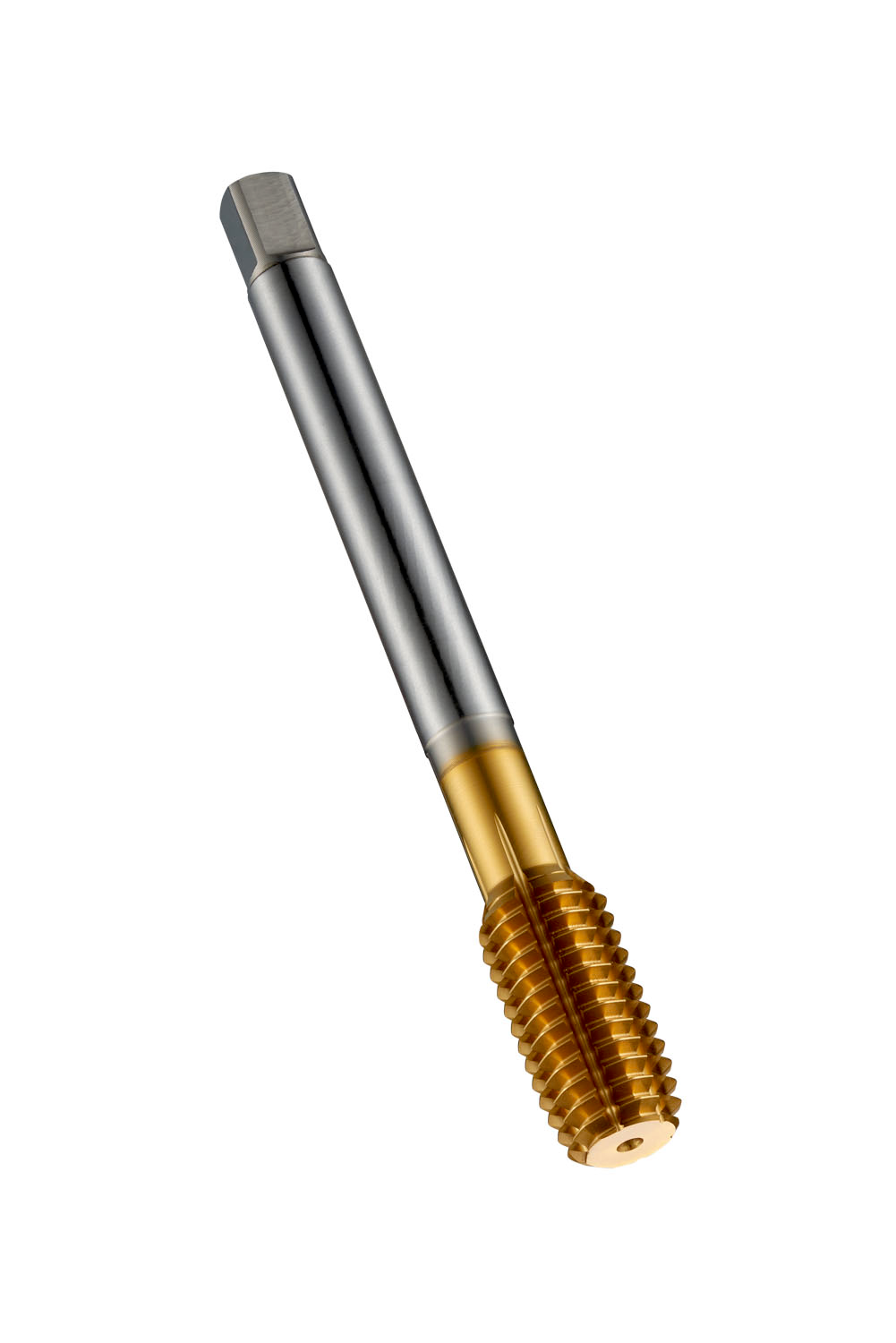

Thread forming tap with lube grooves with chamfer form C with a 2-3xP plug lead, for Unified National Coarse thread UNC 10 with 24 TPI and 2BX class of fit, dimensions according to DIN 2184-1 standard with 6.0 mm shank and 4.9 mm square drive, cobalt based HSS-E with TiN coating for 3.5xD through or blind hole threading in steel and cast steel, stainless steel and wrought or cast aluminium

Package Quantity: 1

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7174108
