Dormer-Pramet

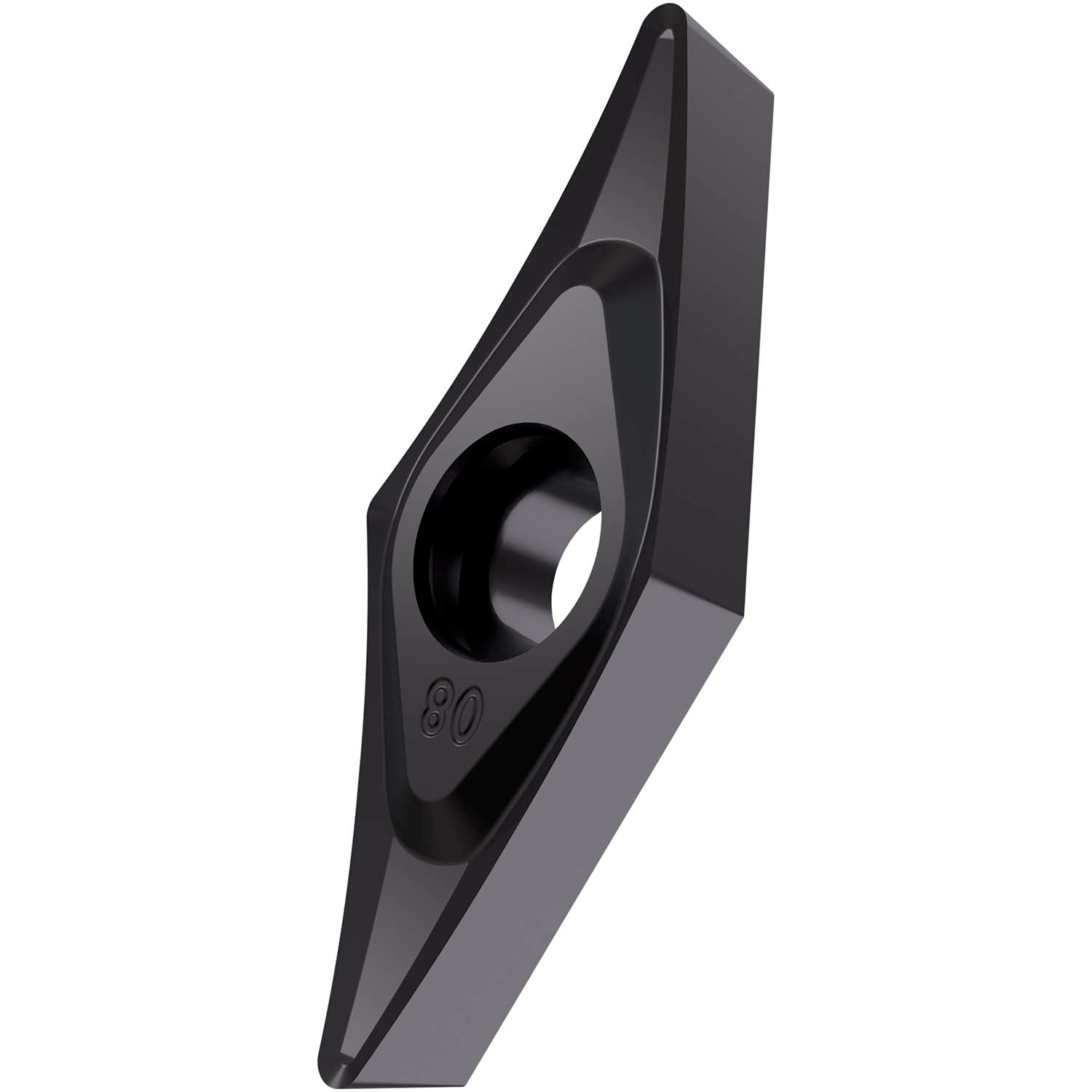

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 9.525 mm, 4.76 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF3 with rounded cutting edges, in grade T6310, a PVD coated extra fine grained WC-Co carbide within ISO ranges M01 -M15/N05 -N20 and S01 -S15, for fine to medium machining of stainless-steels, non-ferrous metals and super-alloys

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7168612
