Dormer-Pramet

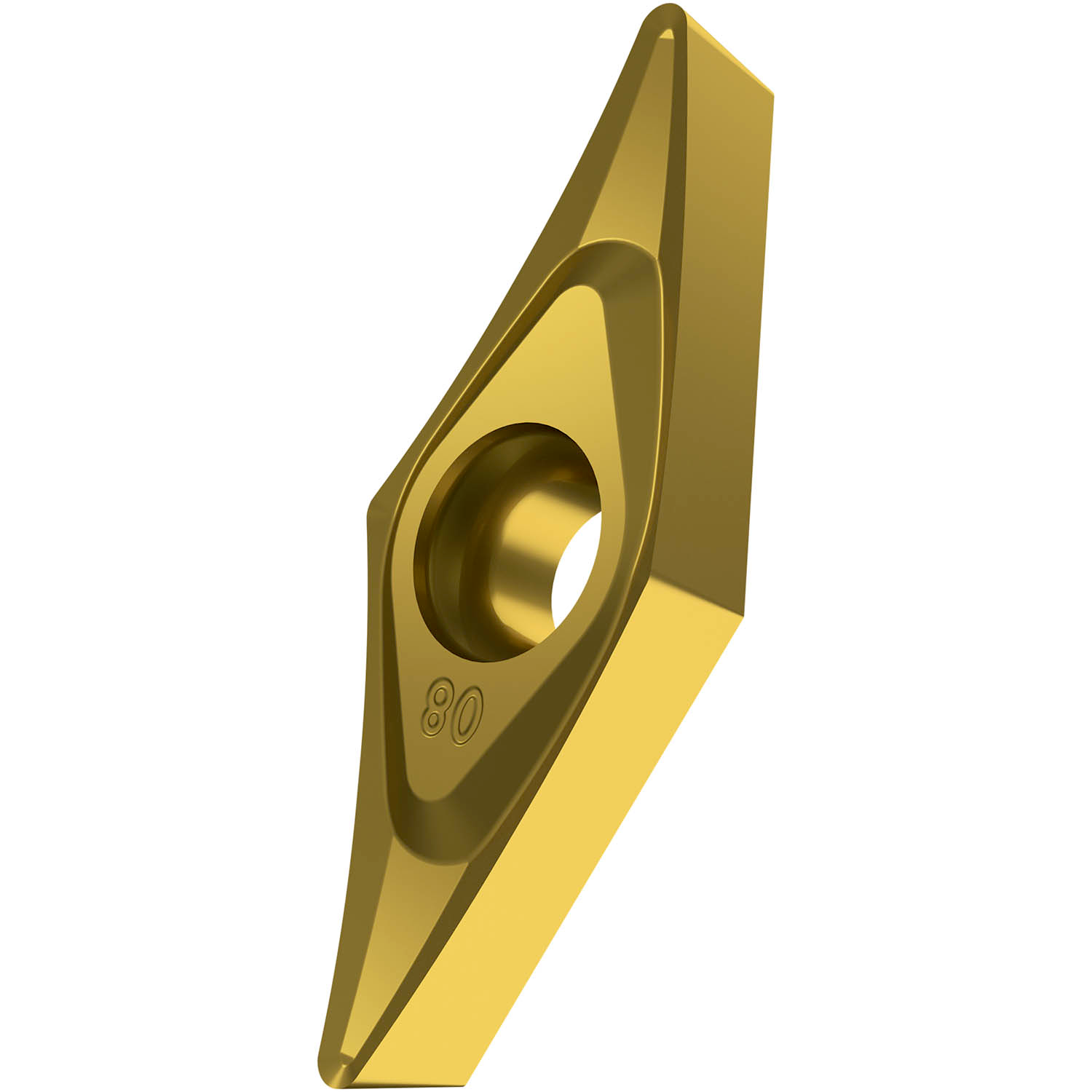

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 9.525 mm, 4.76 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF3 with rounded cutting edges, in grade T8315, a PVD coated fine grained WC-Co carbide within ISO ranges M05 -M20 and N05 -N25, for fine to medium machining of stainless-steels and non-ferrous metals

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7168610
