Dormer-Pramet

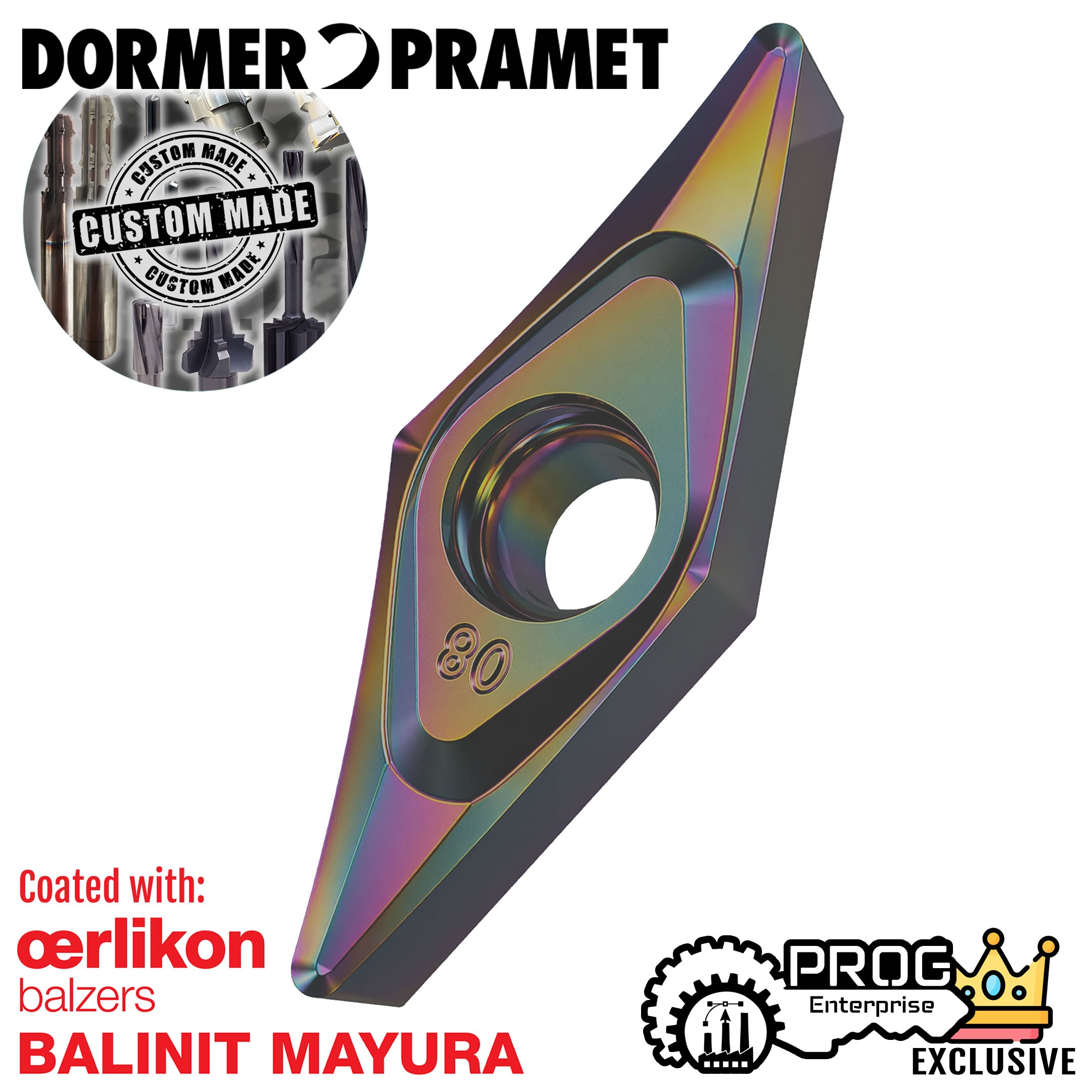

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 9.525 mm, 4.76 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF3 with rounded cutting edges. Features FA geometry with sharp cutting edges, now enhanced with a BALINIT® MAYURA (ta-C DLC) coating from Oerlikon Balzers, specifically engineered for turning non-ferrous materials. This ultra-thin (~0.3 µm), high-hardness (>65 GPa) carbon-based coating provides:

• Extremely low friction (<0.10)
• Reduced material adhesion
• Maintained sharp cutting edges
• Significantly improved wear resistance and tool life

Suitable for turning non-ferrous materials including aluminum alloys (including high-Si content), copper, brass, and polymers.

Package Quantity: 1

For complete product detail specifications, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7168608
