Dormer-Pramet

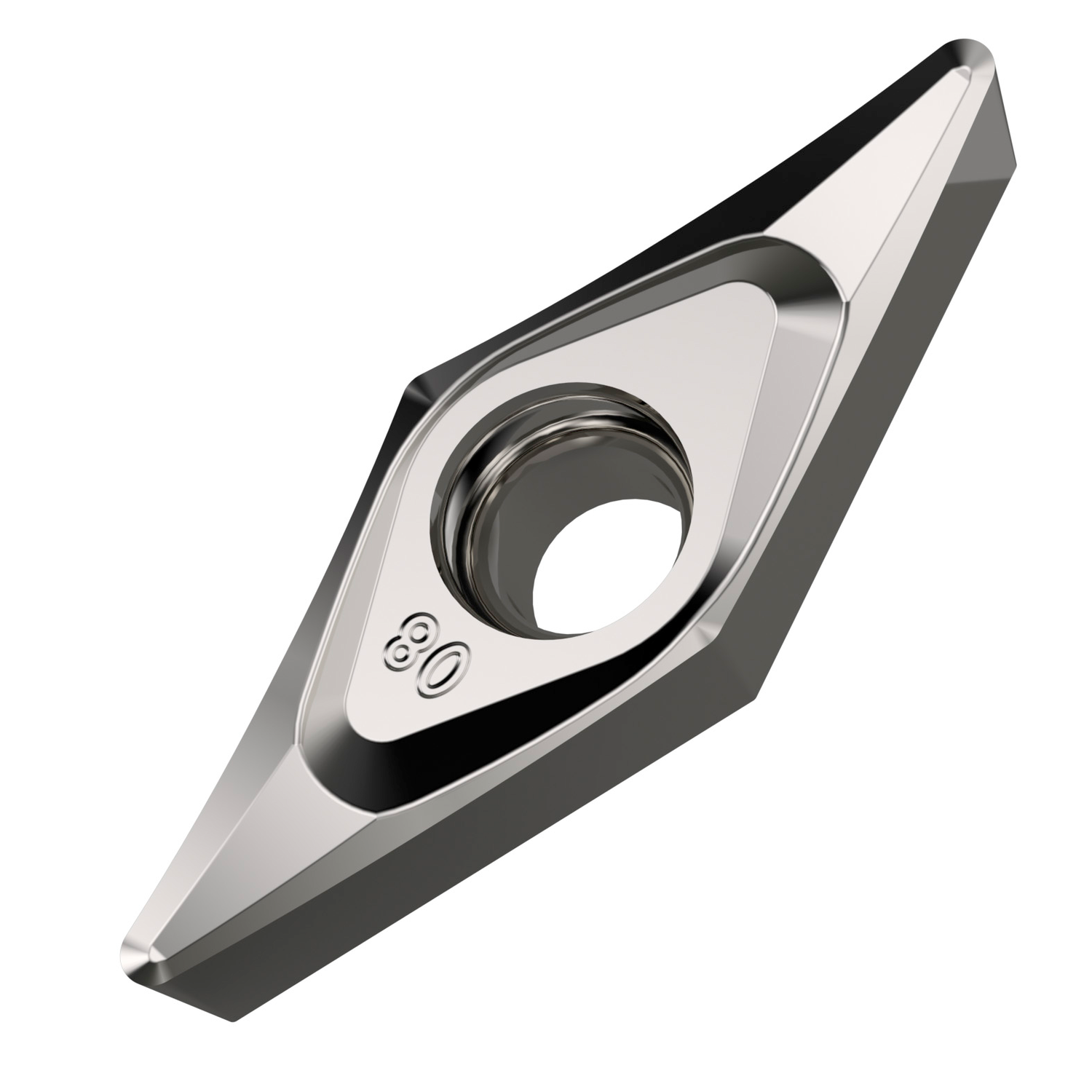

Single-sided positive turning insert, 35° rhomboid with 7° clearance, inscribed circle diameter of 3.97 mm, 2.38 mm thick, 0.2 mm nose radius, indexing accuracy according to ISO-tolerance class-G, chip-breaker SF3 with rounded cutting edges, in grade H07, an uncoated WC-Co carbide within ISO ranges N10 -N30 and S01 -S20, for fine to medium machining of non-ferrous metals and super-alloys

Package Quantity: 10

For complete technical specifications, cutting parameters, engineering data, and current availability across distribution centers, refer to the official Dormer-Pramet product page using the link below:

https://dormerpramet.com/p/7168590
